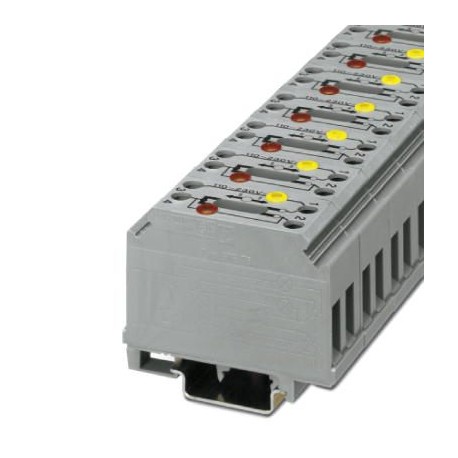

PHOENIX CONTACT GTF 76/230 GTF 76/230 3121012 PHOENIX CONTACT Disconnect terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GTF 76/230 3121012 PHOENIX CONTACT Disconnect terminal block

GTF 76/230

3121012

PHOENIX CONTACT

10 Pcs.

Disconnect terminal block Interruptible terminal block, nominal voltage: 250 V, nominal current: 41 A, 1st floor, connection type: Screw connection, Sizing cross-section: 6 mm², cross-section: 0.5 mm² - 10 mm², mounting: NS 35/7.5, NS 35/15, NS 32, color: gray

Automation > (Knife) disconnect terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3121012
Packing unit10 pc
Catalog pagePage 497 (C-1-2017)
GTIN4017918092917
Weight per Piece (excluding packing)61.420 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of levels1
Number of connections2
Nominal cross section6 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage4 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition1.31 W
Nominal current IN41 A
Maximum load current57 A
Nominal voltage UN110 V
250 V
LED voltage range110 V AC ... 250 V AC
LED current range0.5 mA ... 1 mA
Open side panelNo
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Length64.5 mm
Width22.5 mm
Height NS 35/7,554 mm
Height NS 35/1561.5 mm
Height NS 3259 mm

Connection data

Connection methodScrew connection
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.10 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.6 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.8
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.6 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
2 conductors with same cross section, solid min.0.5 mm²
2 conductors with same cross section, solid max.6 mm²
2 conductors with same cross section, stranded min.0.5 mm²
2 conductors with same cross section, stranded max.6 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.4 mm²
Stripping length12 mm
Internal cylindrical gageA5
Screw threadM4
Tightening torque, min1.2 Nm
Tightening torque max1.5 Nm

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Classifications


ETIM for 3121012 Terminal blocks (EC000902)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.5 mm²
Connectable conductor cross section solid-core (EF007337) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Rated current In (EF008250) 41 A
Rated voltage (EF000228) 250 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of clamp positions per level (EF002660) 2
Internally connected stages (EF002661) Yes
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 22.5 mm
Height (EF000040) 64.5 mm
Depth (EF000049) 53.5 mm
Closing plate required (EF002525) No
Colour (EF000007) Grey
Type of cross disconnection (EF002546) None
With integrated test socket (EF002547) No
