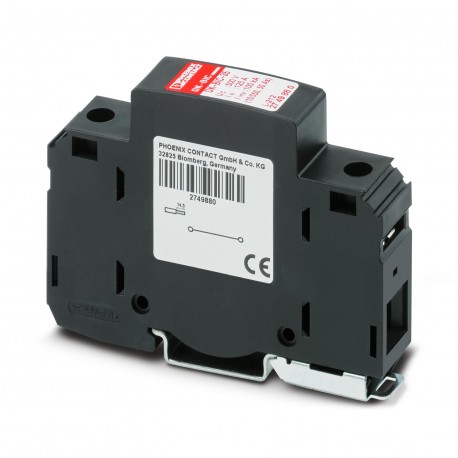

PHOENIX CONTACT DK-BIC-35 DK-BIC-35 2749880 PHOENIX CONTACT Feed-through terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DK-BIC-35 2749880 PHOENIX CONTACT Feed-through terminal block

DK-BIC-35

2749880

PHOENIX CONTACT

1 Pcs.

Feed-through terminal block Feed-through terminal block for VAL and FLT applications

Automation > Feed-through terminal block
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
General
NoteThe nominal cross section for rated load current is 35 mm².
Product properties
Product typeFeed-through terminal block
TypeDIN rail module, one-piece
Number of connections2
Number of rows1
Data management status
Article revision13
Insulation characteristics
Overvoltage categoryIII
Pollution degree2
Electrical properties
Rated voltage (III/3)500 V AC/DC
Connection data
Screw threadM5
Tightening torque... 4.5 Nm
Stripping length14.5 mm
Conductor cross section rigid0.5 mm² ... 35 mm²
Cross section AWG20 ... 2 (converted acc. to IEC)
Conductor cross section flexible0.5 mm² ... 25 mm²
Nominal current125 A (30 °C)
Nominal voltage500 V AC
500 V DC
Nominal cross section25 mm²
Dimensions
Dimensional drawingdalgfbeumh.jpg
Width17.7 mm
Height89.8 mm
Depth65.5 mm (incl. DIN rail 7.5 mm)
Horizontal pitch1 Div.
Material specifications
Colorblack (RAL 9005)
Flammability rating according to UL 94V-0
Housing materialPA 6.6-FR
Mechanical properties
Mechanical data
Open side panelNo
Protective circuit
Maximum continuous voltage UC500 V AC
500 V DC
Impulse discharge current (10/350) µs, charge50 As
Impulse discharge current (10/350) µs, specific energy2.5 MJ/Ω
Impulse discharge current (10/350) µs, peak value limp100 kA
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-40 °C ... 85 °C
Standards and regulations
Air clearances and creepage distances
Standards/regulationsDIN VDE 0110-1 / IEC 60664-1
Standards/specificationsEN 60947-7-1
Note2009
Standards/specificationsIEC 61643-11
Note2011
Standards/specificationsEN 61643-11
Note2012
Mounting
Mounting typeDIN rail: 35 mm

ETIM for 2749880 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section solid-core (EF007337) 0.5 mm²
Rated current In (EF008250) 125 A
Rated voltage (EF000228) 500 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Suitable for conductor material (EF012572) Aluminium/copper
Operating temperature (EF002393) -40 °C
Inflammability class of insulation material according to UL94 (EF002521) Other
Closing plate required (EF002525) No
Colour (EF000007) Black
Internally connected stages (EF002661) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
