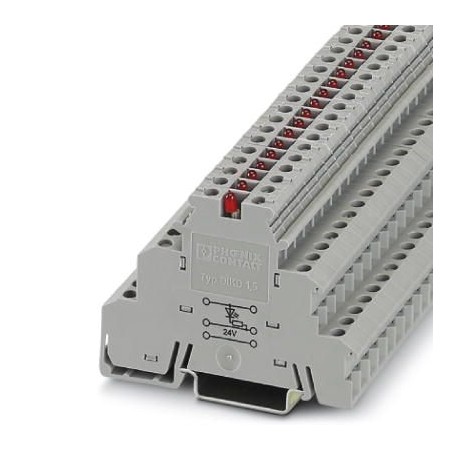

DIKD 1,5-LA 24RD/O-M 2715814 PHOENIX CONTACT Sensor/actuator terminal block

DIKD 1,5-LA 24RD/O-M

2715814

PHOENIX CONTACT

50 Pcs.

Sensor/actuator terminal block Terminal block for detectors/actuators, nominal voltage: 250 V, nominal current: 24 A, connection type: Screw connection, 1., 2. and 3rd floor, Dimensioning cross-section: 2.5 mm², cross-section: 0.2 mm² - 4 mm², mounting class: NS 35/7.5, NS 35/15, colour: grey

Automation > Sensor/actuator terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2715814
Packing unit50 pc
Catalog pagePage 445 (C-1-2017)
GTIN4017918061562
Weight per Piece (excluding packing)20.780 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of levels3
Number of connections6
Nominal cross section2.5 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V2
Rated surge voltage4 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition0.77 W (the value is multiplied when connecting multiple levels)
Nominal current IN24 A
Maximum load current30 A (with 4 mm² conductor cross section)
Nominal voltage UN250 V
Open side panelNo

Dimensions

Width6.2 mm
Length72.5 mm
Height NS 35/7,554.5 mm
Height NS 35/1562 mm

Connection data

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Cross section with insertion bridge, solid max.4 mm²
Cross section with insertion bridge, stranded max.2.5 mm²
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.1 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.1 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.1 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1 mm²
Cross section with insertion bridge, solid max.4 mm²
Cross section with insertion bridge, stranded max.2.5 mm²
Stripping length8 mm
Internal cylindrical gageA3
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Standards and Regulations

Connection in acc. with standardCSA
Flammability rating according to UL 94V2

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2715814 Terminal blocks (EC000900)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Rated current In (EF008250) 24 A
Rated voltage (EF000228) 250 V
Number of levels (EF002659) 3
Number of clamp positions per level (EF002660) 2
Internally connected stages (EF002661) No
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Mounting method (EF000003) Other
Cross connectable (EF005717) Yes
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V2
Width (EF000008) 6.2 mm
Height (EF000040) 72.5 mm
Depth (EF000049) 54.5 mm
Colour (EF000007) Grey
With PE connection (EF002534) No
With shield connection (EF002535) No
Disconnect function (EF006183) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
