View larger
Images are for illustrative purposes only. Please refer to data sheet for details

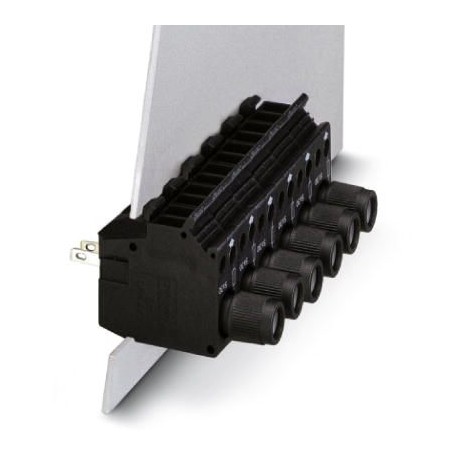

DFK 4-SI(6,3X32) BK 0708344 PHOENIX CONTACT Fuse panel feed-through terminal block
DFK 4-SI(6,3X32) BK
0708344
PHOENIX CONTACT
50 Pcs.
Fuse panel feed-through terminal block
Borne grommets, number of poles: 1, width: 12.2 mm, color: black
Automation > Panel feed-through terminal block
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0708344 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 639 (C-1-2013) |
| GTIN | 4017918004613 |
| Weight per Piece (excluding packing) | 16.480 g |
| Custom tariff number | 85369010 |
| Country of origin | BG (Bulgaria) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Color | black |
| Insulating material | PA |
| Flammability rating according to UL 94 | V2 |
| Maximum load current | 10 A |
| 6.3 A | |
| Rated surge voltage | 4 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Connection in acc. with standard | IEC 60947-7-3 |
| Nominal current IN | 10 A |
| Maximum load current | 10 A |
| Nominal voltage UN | 400 V |
| Open side panel | No |
| Number of positions | 1 |
Connection data
| Connection side | Level 1 ext. 1 |
|---|---|
| Connection method | Screw connection |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 6 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 4 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 10 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 4 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.25 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 2.5 mm² |
| 2 conductors with same cross section, solid min. | 0.2 mm² |
| 2 conductors with same cross section, solid max. | 1.5 mm² |
| 2 conductors with same cross section, stranded min. | 0.2 mm² |
| 2 conductors with same cross section, stranded max. | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 0.25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 1.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 2.5 mm² |
| Stripping length | 8 mm |
| Internal cylindrical gage | A4 |
| Screw thread | M3 |
| Tightening torque, min | 0.6 Nm |
| Tightening torque max | 0.8 Nm |
| Connection side | Level 1 int. 1 |
| Connection method | Solder/Slip-on connection |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Internal cylindrical gage | A4 |
| Slip-on connection | 2.8 x 0.8 mm |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| IEC 60947-7-3 | |
| IEC 60947-7-3 | |
| Flammability rating according to UL 94 | V2 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
