View larger
Images are for illustrative purposes only. Please refer to data sheet for details

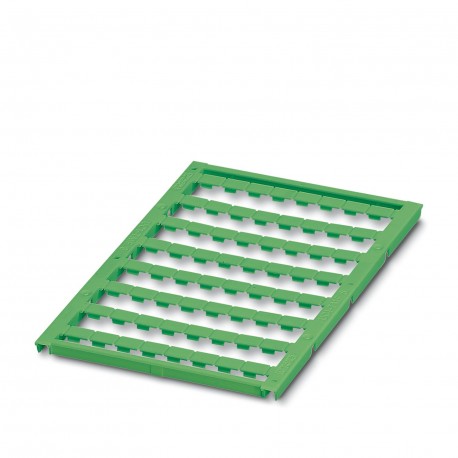

UC1-TMF 8 GN CUS 0828352 PHOENIX CONTACT Marker for terminal blocks
UC1-TMF 8 GN CUS
0828352
PHOENIX CONTACT
1 Pcs.
Marker for terminal blocks
Marker for terminals, available: by mats, green, labeled according to customer specifications, mounting type: fit into flat index slot, for terminal width: 8.2 mm, usable surface: 7.65x5.2mm, Number of individual indexes: 64
Marker for terminal blocks, can be ordered: by sheet, green, labeled according to customer specifications, mounting type: snap into flat marker groove, for terminal block width: 8.2 mm, Number of individual labels: 64
Automation > Labelling for terminal block
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Labeled terminal marker |
| Pitch | 8.2 mm |
| Type | flat |
| Data management status | |
| Article revision | 01 |
| Marking | |
| Number of individual labels | 64 |
| Number of individual labels per row | 8 |
| Identification technology | UV LED technology |
Mounting
| Mounting type | snap into flat marker groove |
Material specifications
| RoHS compliant | yes |
| Color | green (RAL 6021) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 120 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
| Components | free from silicone and halogen |
Environmental and real-life conditions
| Test for substances that would hinder coating with paint or varnish | |
| Result | Test passed |
| UV resistance | |
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 120 °C |
Dimensions
| Width | 8 mm |
| Pitch | 8.2 mm |
Standards and regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
