View larger
Images are for illustrative purposes only. Please refer to data sheet for details

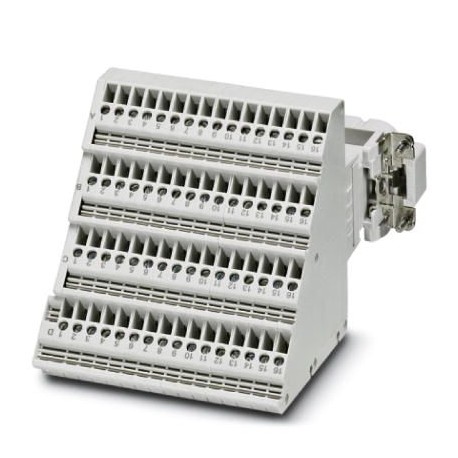

HC-D 64-A-UT-PER-M 1584318 PHOENIX CONTACT Terminal adapter
HC-D 64-A-UT-PER-M
1584318
PHOENIX CONTACT
1 Pcs.
Terminal adapter
HEAVYCON terminal block adapter with plug insert, D64 series, 64 poles, ground connection on the left for the right side of the control cabinet, screw connection
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1584318 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 531 (C-2-2017) |
| GTIN | 4046356142571 |
| Weight per Piece (excluding packing) | 222.220 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
Electrical characteristics
| Number of positions | 64 |
|---|---|
| Connection in acc. with standard | IEC / EN |
| Rated voltage (III/3) | 250 V |
| Rated surge voltage | 4 kV |
| Rated current | 10 A |
Mechanical characteristics
| Type | B24 |
|---|---|
| Connection method | Screw connection |
| Tightening torque | 0.5 Nm ... 0.8 Nm |
| Stripping length of the individual wire | 10 mm |
| Conductor cross section | 0.2 mm² ... 2.5 mm² |
| Connection cross section AWG | 22 ... 12 |
General
| Note | For HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B24 type |
|---|---|
| Connectors may be operated only when there is no load/voltage. | |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA |
| Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22 and R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL2) |
| PA: Fire protection in rail vehicles - requirement set R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) | |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Flammability rating according to UL 94 | V0 |
| Connection in acc. with standard | IEC / EN |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| Not for HC-EVO panel mounting bases | |
| Not for HC-EVO panel mounting bases | |
| Installation instructions | Not for HC-B 24-AMQ-EMV housings |
Standards and Regulations
| Constructional and testing regulations | DIN EN 61984 |
|---|---|
| DIN EN 60664 | |
| IEC 60352 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
