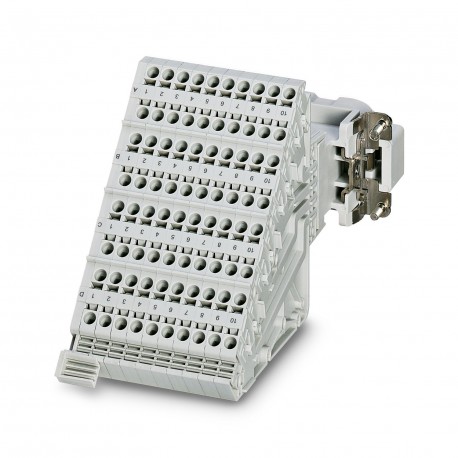

PHOENIX CONTACT HC-D 40-A-TWIN-PER-M HC-D 40-A-TWIN-PER-M 1580176 PHOENIX CONTACT Terminal adapter View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-D 40-A-TWIN-PER-M 1580176 PHOENIX CONTACT Terminal adapter

HC-D 40-A-TWIN-PER-M

1580176

PHOENIX CONTACT

1 Pcs.

Terminal adapter HEAVYCON terminal block adapter with plug insert, D40 series, 40 poles, PE connection on the left for the right side of the control cabinet, push-in connection HEAVYCON Male Contact Insert with Adapter, D40 Series, 40-pin, PE Connection Left for the Right Side of the Control Cabinet, Push-in Connection

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1580176
Packing unit4 pc
Catalog pagePage 531 (C-2-2017)
GTIN4046356154505
Weight per Piece (excluding packing)281.870 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Drill hole distance, horizontal77.5 mm
Height139.3 mm

Ambient conditions

Degree of protection (IP)IP20
Ambient temperature (operation)-40 °C ... 125 °C

Electrical characteristics

Number of positions40
Rated voltage (III/3)250 V
Rated surge voltage6 kV
Rated current10 A

Mechanical characteristics

TypeB16
Connection methodPush-in connection
Stripping length of the individual wire10 mm
Conductor cross section0.5 mm² ... 2.5 mm²
Connection cross section AWG22 ... 12

General

NoteFor HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B16 type
Connectors may be operated only when there is no load/voltage.
Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPA
Standards/regulationsPA: Fire protection in rail vehicles - requirement sets R22 and R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL2)
PA: Fire protection in rail vehicles - requirement set R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Degree of pollution3
Overvoltage categoryIII
Flammability rating according to UL 94V0
Assembly instructionsTo ensure correct use, installation in housing with IP54 protection or better is required
Not for HC-EVO panel mounting bases
Not for HC-EVO panel mounting bases
Installation instructionsConnectors may be plugged in only when there is no load/voltage. Not for HC-B 16-AMQ-EMV housings

Standards and Regulations

Constructional and testing regulationsDIN EN 61984
DIN EN 60664
IEC 60352
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
