PHOENIX CONTACT HC-D 40-A-TWIN-PEL-M HC-D 40-A-TWIN-PEL-M 1580150 PHOENIX CONTACT Terminal adapter View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-D 40-A-TWIN-PEL-M 1580150 PHOENIX CONTACT Terminal adapter

HC-D 40-A-TWIN-PEL-M

1580150

PHOENIX CONTACT

1 Pcs.

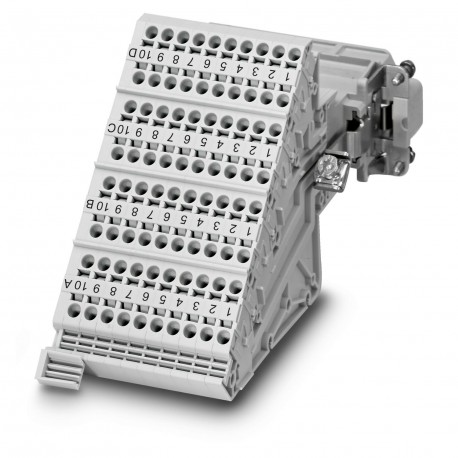

Terminal adapter HEAVYCON terminal block adapter with plug insert, D40 series, 40 poles, PE connection on the right for the left side of the control cabinet, push-in connection HEAVYCON terminal adapter male insert, D40 series, 40-pos., right PE connection for the left side of the control cabinet, push-in connection

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralFor HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B16 type
GeneralConnectors may be operated only when there is no load/voltage.
Product properties
Product typeTerminal adapter
Product familyHC-D
SeriesHC-D
TypeB16
Number of positions40
Connection profile40+PE
Typefor the left side of the control cabinet
Data management status
Article revision09
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated voltage (III/3)250 V
Rated surge voltage4 kV
Rated current10 A
SCCR5 kA (UL 2237)
Connection data
Connection technology
Connection technologyPush-in connection
Conductor connection
Conductor cross section0.5 mm² ... 2.5 mm²
Connection cross section AWG22 ... 12
Stripping length of the individual wire10 mm
Dimensions
Dimensional drawingwwialatyzg.jpg
Width34 mm
Height139.3 mm
Length83 mm
Drill hole distance, horizontal77.5 mm
Drill hole distance, vertical27 mm
Material specifications
Flammability rating according to UL 94V0
Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPA
Standards/regulationsPA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Cable/line
Stripping length of the individual wire10 mm
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 500
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-40 °C ... 125 °C
Standards and regulations
Constructional and testing regulationsDIN EN 61984
DIN EN 60664
IEC 60352
TestsDIN EN 61984
DIN EN 60664
IEC 60352
Testing
Standards/regulationsPA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Mounting
Assembly noteTo ensure correct use, installation in housing with IP54 protection or better is required
Not for HC-EVO panel mounting bases

ETIM for 1580150 Connectors (EC000438)
Feature Name Feature Value
Contact type (EF001587) Pin
Number of poles (EF001391) 40
Material connector insert (EF007545) Other
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 250 V
Over voltage category (EF006785) III
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Material of contact surface (EF004020) Other
Material contact (EF007544) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) Yes
Width (EF000008) 34 mm
Height (EF000040) 139.3 mm
Depth (EF000049) 83 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
