View larger
Images are for illustrative purposes only. Please refer to data sheet for details

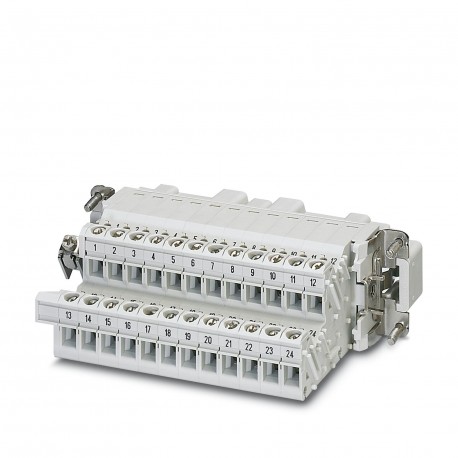

HC-B 24-A-UT-PER-M 1648108 PHOENIX CONTACT Terminal adapter
HC-B 24-A-UT-PER-M
1648108
PHOENIX CONTACT
5 Pcs.
Terminal adapter
HEAVYCON terminal adapter with plug insert, B24 series, 24 poles, ground connection on the left for the right side of the control cabinet, screw connection.
HEAVYCON terminal adapter male insert, B24 series, 24-pos., left protective conductor connection for the right side of the control cabinet, screw connection.
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | For HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B24 type |
| General | Connectors may be operated only when there is no load/voltage. |
Product properties
| Product type | Terminal adapter |
| Product family | HC-B |
| Series | HC-B |
| Type | B24 |
| Number of positions | 24 |
| Connection profile | 24+PE |
| Contact numbering | 1 - 24 |
| Type | for the right side of the control cabinet |
| Screwdriver blade | 0.5 x 3.5 mm |
| Data management status | |
| Article revision | 08 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated voltage (III/3) | 500 V |
| Rated surge voltage | 6 kV |
| Rated current | 16 A |
| SCCR | 5 kA (UL 2237) |
Connection data
| Connection technology | |
| Connection technology | Screw connection |
| Connection in acc. with standard | IEC / EN |
| Conductor connection | |
| Conductor cross section | 0.5 mm² ... 2.5 mm² |
| Connection cross section AWG | 20 ... 14 |
| Tightening torque | 0.5 Nm ... 0.8 Nm |
| Stripping length of the individual wire | 12 mm |
Dimensions
| Dimensional drawing |  |
| Width | 34 mm |
| Height | 71.6 mm |
| Length | 111 mm |
| Drill hole distance, horizontal | 104 mm |
| Drill hole distance, vertical | 27 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA |
| Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Cable/line
| Stripping length of the individual wire | 12 mm |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Standards and regulations
| Constructional and testing regulations | DIN EN 61984 |
| DIN EN 60664 | |
| IEC 60352 | |
| Tests | DIN EN 61984 |
| DIN EN 60664 | |
| IEC 60352 | |
| Testing | |
| Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Mounting
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Connectors may only be actuated when there is no load/voltage. |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 24 |
| Material connector insert (EF007545) | Other |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 500 V |
| Over voltage category (EF006785) | III |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Material of contact surface (EF004020) | Other |
| Material contact (EF007544) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | Yes |
| Width (EF000008) | 34 mm |
| Height (EF000040) | 71.6 mm |
| Depth (EF000049) | 111 mm |
