HC-B 16-A-DT-PER-M 1648461 PHOENIX CONTACT Terminal adapter

HC-B 16-A-DT-PER-M

1648461

PHOENIX CONTACT

5 Pcs.

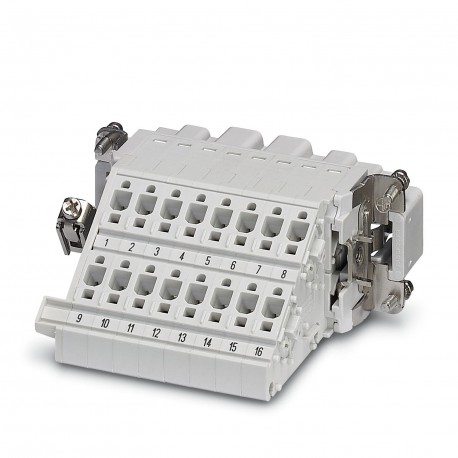

Terminal adapter HEAVYCON terminal block adapter with plug insert, B16 series, 16 poles, for the right side of the control cabinet, push-in connection

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralFor HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B16 type
GeneralConnectors may be operated only when there is no load/voltage.
Product properties
Product typeTerminal adapter
Product familyHC-B
SeriesHC-B
TypeB16
Number of positions16
Connection profile16+PE
Contact numbering1 - 16
Typefor the right side of the control cabinet
Data management status
Article revision10
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated voltage (III/3)500 V
Rated surge voltage6 kV
Rated current16 A
SCCR5 kA (UL 2237)
Connection data
Connection technology
Connection technologyPush-in connection
Conductor connection
Conductor cross section0.5 mm² ... 2.5 mm²
Connection cross section AWG22 ... 12
Stripping length of the individual wire10 mm (13 mm with ferrule)
Dimensions
Dimensional drawingyvvjewnyiy.jpg
Width34 mm
Height70.5 mm
Length84 mm
Drill hole distance, horizontal77.5 mm
Drill hole distance, vertical27 mm
Material specifications
Flammability rating according to UL 94V0
Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPA
Standards/regulationsPA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Cable/line
Stripping length of the individual wire10 mm (13 mm with ferrule)
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 500
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-40 °C ... 125 °C
Standards and regulations
Constructional and testing regulationsDIN EN 61984
DIN EN 60664
IEC 60352
TestsDIN EN 61984
DIN EN 60664
IEC 60352
Testing
Standards/regulationsPA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Mounting
Assembly noteTo ensure correct use, installation in housing with IP54 protection or better is required
Connectors may be plugged in only when there is no load/voltage.

ETIM for 1648461 Connectors (EC000438)
Feature Name Feature Value
Contact type (EF001587) Pin
Number of poles (EF001391) 16
Material connector insert (EF007545) Other
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 500 V
Over voltage category (EF006785) III
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Material of contact surface (EF004020) Other
Material contact (EF007544) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) Yes
Width (EF000008) 34 mm
Height (EF000040) 70.5 mm
Depth (EF000049) 84 mm
