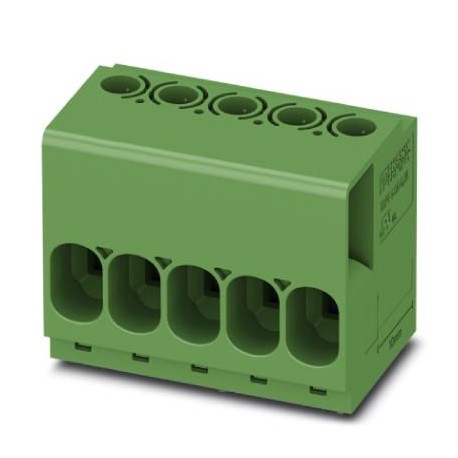

PHOENIX CONTACT TDPT 4/ 3-SC-6,35-ZB TDPT 4/ 3-SC-6,35-ZB 1017515 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TDPT 4/ 3-SC-6,35-ZB 1017515 PHOENIX CONTACT PCB terminal block

TDPT 4/ 3-SC-6,35-ZB

1017515

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 41 A, nominal voltage (III/2): 1000 V, nominal section: 4 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, family of articles: TDPT 4/.. -SC, pitch: 6.35 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Zigzag pins W, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, Packing Type: Boxed Packed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1017515
Packing unit50 pc
Minimum order quantity50 pc
GTIN4055626501499
Weight per Piece (excluding packing)11.800 g
Custom tariff number85369010
Country of originCN (China)

Item properties

Brief article descriptionPCB terminal block
Range of articlesTDPT 4/..-SC
Pitch6.35 mm
Number of positions3
Connection methodScrew connection with tension sleeve
Drive form screw headSlotted (L)
Screw threadM3
Mounting typeWave soldering
Pin layoutZigzag pinning W
Number of levels1

Electrical parameters

Rated current41 A
Rated insulation voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV

Connection capacity

Conductor cross section solid0.2 mm² ... 6 mm²
Conductor cross section flexible0.2 mm² ... 6 mm²
Conductor cross section AWG / kcmil24 ... 10
Conductor cross section flexible, with ferrule without plastic sleeve0.2 mm² ... 4 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.2 mm² ... 4 mm²
2 conductors with same cross section, solid0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1.5 mm²
Stripping length10 mm
Torque0.5 Nm ... 0.6 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Length [ l ]20.75 mm
Width [ w ]19.85 mm
Height [ h ]26.9 mm
Pitch6.35 mm
Height (without solder pin)23.4 mm
Solder pin [P]3.5 mm
Pin dimensions0.9 x 0.9 mm
Dimension a12.7 mm

Dimensions for PCB design

Hole diameter1.7 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 105 °C
Ambient temperature (operation)-40 °C

Pull-out test

Conductor cross section / conductor type / tensile force0.2 mm² / flexible / > 10 N
0.2 mm² / solid / > 10 N
6 mm² / flexible / > 80 N
6 mm² / solid / > 60 N

Electrical tests

Rated current41 A
Rated insulation voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV

Air clearances and creepage distances

Insulating material groupI
Voltage800 V
Rated insulation voltage (III/3)800 V
Rated insulation voltage (III/2)1000 V
Rated insulation voltage (II/2)1000 V
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1017515 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 26.9 mm
Number of electrical connections (EF008252) 3
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 6.35 mm
Rated current In (EF008250) 41 A
Rated voltage (EF000228) 1000 V
Rated surge voltage (EF002993) 8 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.2 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.7 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
