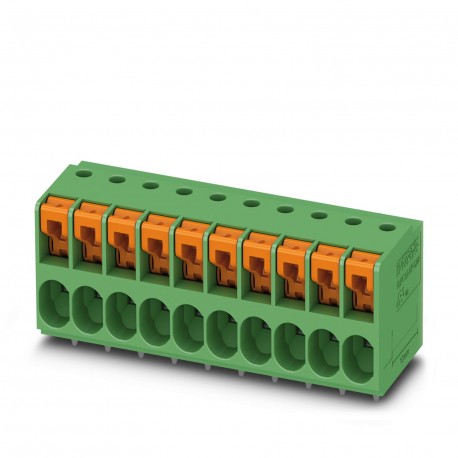

PHOENIX CONTACT TDPT 2,5/ 2-SP-5,08 GY7035 TDPT 2,5/ 2-SP-5,08 GY7035 1128242 PHOENIX CONTACT Terminal for printed circuit board, pitch: 5,08 mm, numbe.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TDPT 2,5/ 2-SP-5,08 GY7035 1128242 PHOENIX CONTACT Terminal for printed circuit board, pitch: 5,08 mm, numbe..

TDPT 2,5/ 2-SP-5,08 GY7035

1128242

PHOENIX CONTACT

50 Pcs.

Terminal for printed circuit board, pitch: 5,08 mm, number of poles: 2 Terminal block for printed circuit board, nominal current: 32 A, nominal voltage (III/2): 400 V, nominal section: 2.5 mm², number of rows: 1, number of poles per row: 2, article family: TDPT 2.5/.. -SP, pitch: 5.08 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: light gray, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

Technical data

Item Properties
Product TypePrinted Circuit Board Terminal
Product FamilyTDPT 2.5/.. -SP
Product LineCOMBICON Terminals M
Number of poles2
Step5.08 mm
Number of rows1
Pin DesignLinear Pin Arrangement
Number of Solder Pins Per Potential2
Data Maintenance Status
Article Review00

Electrical Properties
Nominal Current IN32 A
Nominal voltage UN400 V
Sizing voltage (III/3)320 V
Dimensioning transient voltage (III/3)4 kV
Dimensioning voltage (III/2)400 V
Dimensioning Transient Voltage (III/2)4 kV
Nominal voltage (II/2)630 V
Dimensioning transient voltage (II/2)4 kV

Connection data
Connection technology
Nominal Section2.5 mm²
Connecting Conductors
Connection typePush-in spring connection
Rigid conductor section0.2 mm² ... 4 mm² (Conductor connection with open terminal point)
0.75 mm² ... 4 mm² (Push-in connection)
Flexible conductor section0.2 mm² ... 4 mm²
AWG Conductor Section24 ... 12
Flexible conductor section with toe cap, without plastic sleeve0.2 mm² ... 2.5 mm²
Flexible conductor section with toe cap, with plastic sleeve0.2 mm² ... 2.5 mm²
2 conductors with the same cross-section, flexible with TWIN toe cap with plastic sleeve0.5 mm² ... 0.75 mm²
Peel Length10 mm

assembly
Type of mountingWave soldering
Pin DesignLinear Pin Arrangement

Material Data
Material data - contact
ObservationWEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface CharacteristicsGalvanically tinned
Metal surface of the terminal point (top layer)Tin (10 - 16 μm Sn)
Metal surface weld area (top layer)Tin (10 - 16 μm Sn)
Material data - housing
Color (Housing)Light Grey (7035)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Flammability number of GWFI incandescent filaments according to EN 60695-2-12850
Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13775
Ball hardness test temperature according to EN 60695-10-2125 °C
Material data: drive element
Color (Drive Element)Orange (2003)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Flammability number of GWFI incandescent filaments according to EN 60695-2-12850
Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13775
Ball hardness test temperature according to EN 60695-10-2125 °C

Dimensions
Dimension Schemezswbwfibns.jpg
Step5.08 mm
Width [w]10.96 mm
Height [h]22.5 mm
Length [l]18 mm
Overall Height19 mm
Weld Pin Length [P]3.5 mm
Temple Dimensions0.8 x 0.8 mm
Printed circuit board design
Spacing between rods8.7 mm
Hole diameter1.4 mm

Mechanical testing
Checking for damage to conductors and loosening
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultApproved Test
Tensile Test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Conductor Section/Conductor Type/Tensile Force Nominal Value/Actual Value0.2 mm² / rigid / > 10 N
0.2 mm² / flexible / > 10 N
4 mm² / rigid / > 60 N
4 mm² / flexible / > 60 N

Electrical Testing
Heating Verification
Test SpecificationDIN EN 60947-7-4 (VDE 0611-7-4):2014-08
Heating test requirementThe sum of the ambient temperature and the heating of the PCB connection terminal cannot exceed the upper limit temperature.
Short-term permissible current
Test SpecificationDIN EN 60947-7-4 (VDE 0611-7-4):2014-08
Insulation resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Creepage Lines & Air Isolation Distances
Test SpecificationDIN EN 60947-1 (VDE 0660-100):2015-09
Insulating material groupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))CTI 600
Sizing Insulation Voltage (III/3)320 V
Nominal transient voltage (III/3)4 kV
minimum value of air insulation distance - non-homogeneous field (III/3)3 mm
Minimum creepage line value (III/3)4 mm
Sizing Insulation Voltage (III/2)400 V
Nominal transient voltage (III/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2)3 mm
Minimum creepage line value (III/2)3 mm
Sizing Insulation Voltage (II/2)630 V
Nominal transient voltage (II/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2)3 mm
Minimum creepage line value (II/2)3.2 mm

Environmental and life-life conditions
Vibration test
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test DirectionsX, Y, and Z axes
Essay filam. incandescent
Test SpecificationDIN EN 60695-2-10 (VDE 0471-2-10):2014-04
Temperature850 °C
Performance Time5 s
Aging
Test SpecificationDIN EN 60947-7-4 (VDE 0611-7-4):2014-08
Environmental conditions
Ambient Temperature (Service)-40 °C ... 105 °C (Depending on the current carrying capacity/derating curve)
Ambient Temperature (Storage/Transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient Temperature (Mounting)-5°C ... 105 °C

Packaging Information
Type of packagingBoxed Packaging

ETIM for 1128242 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 22.5 mm
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 32 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.2 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 4 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Grey
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
