View larger
Images are for illustrative purposes only. Please refer to data sheet for details

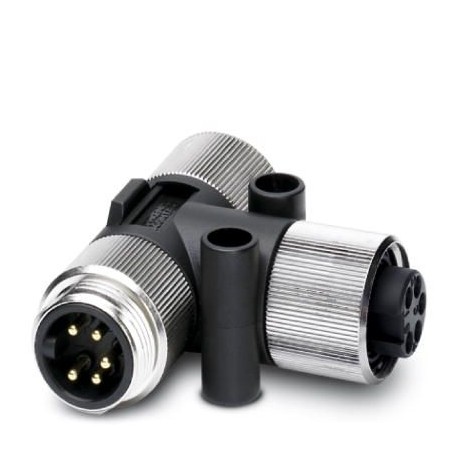

SAC-5P-MINT/2XMIN DN 1401029 PHOENIX CONTACT Bus system T-connector
SAC-5P-MINT/2XMIN DN
1401029
PHOENIX CONTACT
1 Pcs.
Bus system T-connector
Bus System Distributor T-Tube, DeviceNet™, 5-Pole, Unshielded, 7/8"-16UNF Straight Male Connector, to 7/8"-16UNF Straight Connection Female and 7/8"-16UNF Straight Connection Female, Parallel Purge Nozzle
Connectors > Sensor-actuator connector chassis
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1401029 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 424 (C-4-2015) |
| GTIN | 4046356542616 |
| Weight per Piece (excluding packing) | 98.700 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| Ambient temperature (operation) | -40 °C ... 80 °C (Plug / socket) |
General data
| Rated current at 40°C | 10 A (at 25 °C) |
|---|---|
| Rated voltage | 63 V DC |
| Number of positions | 5 |
| Signal type/category | DeviceNet™ |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Alternative short product description | T distributor |
| Contact material | CuZn |
| Contact carrier material | PA |
| Contact surface material | AU |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
