View larger
Images are for illustrative purposes only. Please refer to data sheet for details

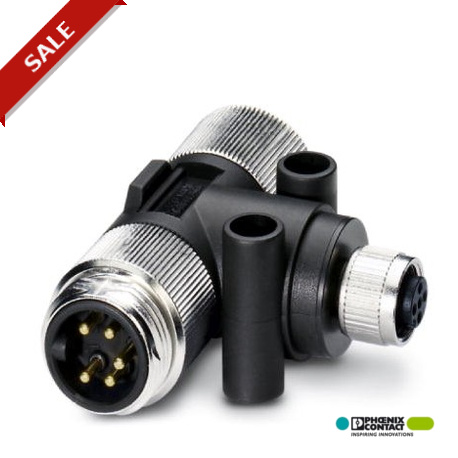

SAC-5P-M12T/2XMIN DN 1401028 PHOENIX CONTACT Bus system T-connector, DeviceNet™, 5-position, Plug straight 7..
SAC-5P-M12T/2XMIN DN
1401028
PHOENIX CONTACT
1 Pcs.
Bus system T-connector, DeviceNet™, 5-position, Plug straight 7/8"-16UNF, on Socket straight M12, A-coded and Plug straight 7/8"-16UNF, Parallel distributor
Bus System Distributor T-, DeviceNet™, 5-Pole, Unshielded, 7/8"-16UNF Straight Male Connector, to M12 Straight Connection Female, Coding: A and 7/8"-16UNF Straight Male Connector, Parallel Purge Nozzle
Connectors > Sensor-actuator connector chassis
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Ambient conditions
| Ambient temperature (operation) | -40 °C ... 75 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 60 V |
| Rated surge voltage | 1500 V |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Signal type/category | DeviceNet™ |
| Status display | No |
| Overvoltage category | II |
| Pollution degree | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 connector) |
| 0.8 Nm (7/8" connectors) |
Material
| Contact material | CuZn |
|---|---|
| Contact surface material | AU |
| Contact carrier material | PA/TPE-U |
| Material of grip body | TPU |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | TPU (7/8" connectors) |
| NBR (M12 connector) |
