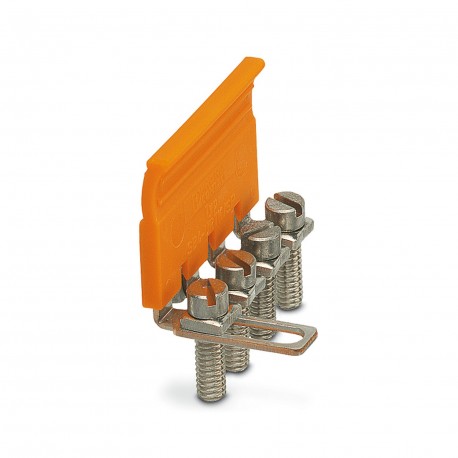

PHOENIX CONTACT SB 4-URTK/SP SB 4-URTK/SP 0360025 PHOENIX CONTACT Switching jumper, Number of positions: 4, Color: silver View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SB 4-URTK/SP 0360025 PHOENIX CONTACT Switching jumper, Number of positions: 4, Color: silver

SB 4-URTK/SP

0360025

PHOENIX CONTACT

10 Pcs.

Switching jumper, Number of positions: 4, Color: silver Bridge link, pitch: 8.2 mm, colour: silver Bridge bar, pitch: 8.2 mm, number of positions: 4, color: silver

Connectors > Cross-connector for terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeBridge bar
Number of positions4
Pitch8.2 mm
Potentials1
Data management status
Article revision03
Connection data
Tightening torque1.2 ... 1.5 Nm
Dimensions
Pitch8.2 mm
Material specifications
Colorsilver-colored
MaterialCopper
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 105 °C
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %
Mounting
Mounting typeScrew mounting

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
