View larger
Images are for illustrative purposes only. Please refer to data sheet for details

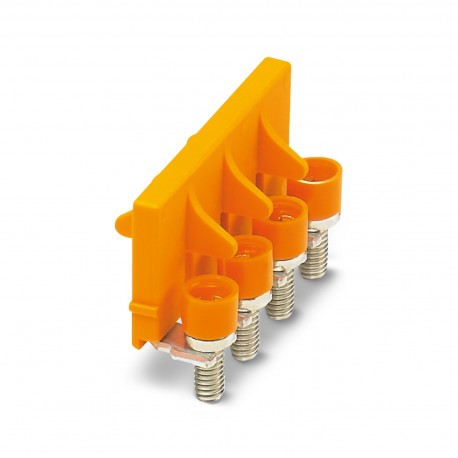

SB 4-8-T 3026379 PHOENIX CONTACT Switching jumper
SB 4-8-T
3026379
PHOENIX CONTACT
10 Pcs.
Switching jumper
Bridge link, pitch: 8.2 mm, color: orange
Bridge bar, pitch: 8.2 mm, number of positions: 4, color: orange
Connectors > Cross-connector for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Bridge bar |
| Number of positions | 4 |
| Pitch | 8.2 mm |
| Potentials | 1 |
| Data management status | |
| Article revision | 06 |
Dimensions
| Width | 31.7 mm |
| Height | 15.6 mm |
| Depth | 15.6 mm |
| Pitch | 8.2 mm |
Material specifications
| Color | orange (RAL 2003) |
| Material | Copper |
| Insulating material | PA |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting type | Plug-in mounting |
| Feature Name | Feature Value |
|---|---|
| Explosion-tested version 'Ex e' (EF008498) | No |
| Mounting method (EF000003) | Pluggable |
| Modular spacing (EF000394) | 8.2 mm |
| Colour (EF000007) | Orange |
