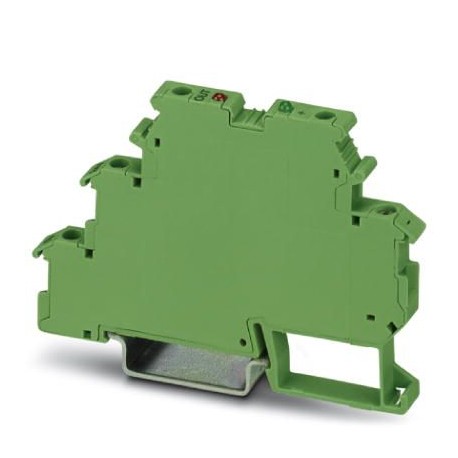

PHOENIX CONTACT EIK1-SVN-24P EIK1-SVN-24P 2940799 PHOENIX CONTACT Solid-state relay module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EIK1-SVN-24P 2940799 PHOENIX CONTACT Solid-state relay module

EIK1-SVN-24P

2940799

PHOENIX CONTACT

1 Pcs.

Solid-state relay module Electronic terminal block amplifier for inductive approach detectors according to NAMUR with light indications for sensor signal and faults

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2940799
Packing unit10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 452 (C-5-2017)
GTIN4017918080242
Weight per Piece (excluding packing)21.100 g
Custom tariff number85364190
Country of originCN (China)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth56 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 50 °C
Ambient temperature (storage/transport)-25 °C ... 70 °C

Input data

DesignationSupply
Input voltage range18.5 V DC ... 28.8 V DC (UVN, see derating curve)
Typical input current at UN70 mA
Max. current consumption70 mA (at 50 mA output current)
Operating voltage displayGreen LED
Type of protectionReverse polarity protection
Protective circuit/componentPolarity protection diode
Transmission frequency1 kHz
DesignationControl circuit
Nominal input voltage UN8.2 V DC ±10 %
Indicationvisual short-circuit and wire break control with LED (red)
Type of protection12 V Zener diode
Protective circuit/component12 V Zener diode
Transmission frequency1 kHz
Switching point≥ 2.1 mA (In conductive state)
≤ 1.2 mA (In blocking state)
6.3 mA ... 10 mA (in the event of a short-circuit)
0 mA ... 0.35 mA (In the event of a wire break)
Switching hysteresisapprox. 0.2 mA
Internal resistanceapprox. 1 kΩ

Output data

DesignationSignal output
Output nominal voltage≤ 100 mV (In conductive state)
UVN- UR;in blocking state
Limiting continuous current50 mA
Voltage drop at max. limiting continuous current≤ 1.5 V (UR)
Type of protection36 V Zener diode as free-wheeling diode
Protective circuit/component36 V Zener diode as free-wheeling diode

Connection data, input side

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Torque0.5 Nm

Connection data, output side

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Torque0.5 Nm

General

Type of noteNote on application
NoteUse of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place.
Mounting positionany
Assembly instructionsIn rows with zero spacing
DesignationAir clearances and creepage distances
Standards/regulationsIEC 60664
EN 61000-6-2
EN 61000-6-4
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

DesignationAir clearances and creepage distances
Standards/regulationsIEC 60664
EN 61000-6-2
EN 61000-6-4
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2940799 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 18.5 V
Rated operation current Ie (EF001443) 0.05 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
