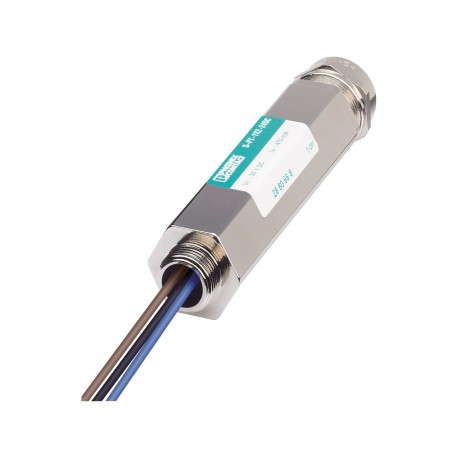

S-PT-1X2-24DC-1/2" 2882569 PHOENIX CONTACT Surge protection device

S-PT-1X2-24DC-1/2"

2882569

PHOENIX CONTACT

1 Pcs.

Surge protection device Overvoltage protection. in IP67 screw-on module for measuring probes, direct mounting via 1/2'' NPT ext. thread, cable gland for signal line, protective circuit. two levels. Suitable for HART. Low-voltage surge arrester in IP67 screw-in module for measuring sensor, direct mounting with 1/2'' NPT external thread, cable gland for signal line, two-stage protection circuit. HART compatible. Can be used in safe circuits up to SIL category 3.

Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2882569
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 101 (C-4-2017)
GTIN4046356091657
Weight per Piece (excluding packing)363.840 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Height33.5 mm
Width33.5 mm
Depth148 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 85 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Altitude≤ 2000 m (amsl (above mean sea level))
Degree of protectionIP67

General

Housing materialZinc die-cast, surface bronzed and nickel-plated
Colorsilver
Standards for cearances and creepage distancesIEC 60664-1
VDE 0110-1
Mounting typedirect screw connection
TypeScrew-in module
Number of positions3
Direction of actionLine-Line & Line-Earth Ground

Protective circuit

IEC test classificationC1
C2
C3
D1
Nominal voltage UN24 V DC
Maximum continuous voltage UC40 V DC
28 V AC
Rated current450 mA (55 °C)
Operating effective current ICat UC≤ 10 µA
Residual current IPE≤ 2 µA
Nominal discharge current In(8/20) µs (line-line)10 kA
Nominal discharge current In(8/20) µs (line-earth)10 kA (per path)
Nominal discharge current In(8/20) µs (shield-earth)10 kA (optional)
Pulse discharge current Iimp(10/350) µs1 kA
Total discharge current Itotal(8/20) µs20 kA
Total discharge current Itotal(10/350) µs2 kA
Max. discharge current Imax(8/20) µs maximum (line-line)10 kA
Max. discharge current Imax(8/20) µs maximum (line-earth)10 kA (per path)
Max. discharge current Imax(8/20) µs maximum (shield-earth)10 kA
Nominal pulse current Ian (10/1000) µs (line-line)23 A
Nominal pulse current Ian (10/1000) µs (line-earth)100 A
Nominal pulse current Ian (10/1000) µs (Shield-Earth)100 A
Output voltage limitation at 1 kV/µs (line-line) spike≤ 55 V
Output voltage limitation at 1 kV/µs (line-earth) spike≤ 450 V (Direct grounding)
Output voltage limitation at 1 kV/µs (shield-earth) spike≤ 600 V (optional)
Output voltage limitation at 1 kV/µs (line-line) static≤ 55 V
Output voltage limitation at 1 kV/µs (line-earth) static≤ 450 V (Direct grounding)
Residual voltage at In(line-line)≤ 55 V
Residual voltage with Ian (10/1000) µs (line-line)≤ 65 V
Voltage protection level Up(line-line)≤ 80 V (C2 - 10 kV / 5 kA)
Voltage protection level Up(line-earth)≤ 450 V (C2 - 10 kV / 5 kA)
Voltage protection level Up(shield-ground)≤ 600 V (C2 - 10 kV / 5 kA)
Voltage protection level Upstatic (line-line)≤ 50 V (C2 - 10 kV / 5 kA)
Response time tA(line-line)≤ 1 ns
Response time tA(line-earth)≤ 100 ns
Response time tA (shield-earth)≤ 100 ns
Input attenuation aE, sym.typ. 0.5 dB (≤ 1.5 MHz / 50 Ω)
typ. 0.2 dB (≤ 300 kHz / 150 Ω)
Cut-off frequency fg (3 dB), sym. in 50 Ohm systemtyp. 6 MHz
Cut-off frequency fg (3 dB), sym. in 150 Ohm systemtyp. 2 MHz
Resistance in series2.2 Ω ±10 %
Surge protection fault messagenone
Max. required back-up fuse500 mA (T)
Impulse durability (line-line)C2 - 10 kV/5 kA
D1 - 1 kA
Impulse durability (line-earth)C2 - 10 kV/5 kA
D1 - 1 kA
Impulse durability (shield-earth)C2 - 10 kV / 5 kA
D1 - 1 kA

Connection data

Connection methodScrew connection
Connection method INScrew terminal blocks
Connection method OUTConnection line
Connection technologyScrew connection
Screw threadM3
Tightening torque0.6 Nm
Stripping length6 mm
Conductor cross section flexible0.14 mm² ... 1.5 mm²
Conductor cross section solid0.14 mm² ... 1.5 mm²
Conductor cross section AWG26 ... 16

Standards and Regulations

Standards/specificationsIEC 61643-21 2002

Classifications


ETIM for 2882569 Earthing, lightning and surge protection (EC000943)
Feature Name Feature Value
Nominal voltage DC (EF008799) 24 V
