View larger
Images are for illustrative purposes only. Please refer to data sheet for details

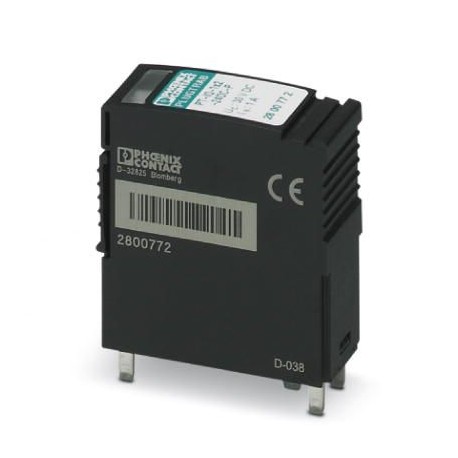

PT-IQ-1X2-12DC-P 2800771 PHOENIX CONTACT Surge protection plug
PT-IQ-1X2-12DC-P
2800771
PHOENIX CONTACT
1 Pcs.
Surge protection plug
Plug-in surge protection with multi-level status and diagnostic indication integrated into the module for a potential-free 2-wire signal circuit. Rated voltage: 12 V DC
Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2800771 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 72 (C-6-2013) |
| GTIN | 4046356645485 |
| Weight per Piece (excluding packing) | 45.000 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 45 mm |
|---|---|
| Width | 17.7 mm |
| Depth | 46.6 mm |
| Horizontal pitch | 1 Div. |
| Complete module height | 91.1 mm |
| Complete module width | 17.7 mm |
| Complete module depth | 77.5 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Degree of protection | IP20 |
General
| Housing material | PA 6.6 |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | black |
| Mounting type | on base element |
| Type | Male |
| Direction of action | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
Protective circuit
| Nominal voltage UN | 12 V DC |
|---|---|
| Maximum continuous voltage UC | 15 V DC |
| 10 V AC | |
| Rated current | 1000 mA (45°C) |
| Total discharge current Itotal(8/20) µs | 20 kA |
| Surge protection fault message | Optical, multi-stage |
Classifications
eCl@ss 4.027140201eCl@ss 4.127130801eCl@ss 5.027130801eCl@ss 5.127130800eCl@ss 6.027130800eCl@ss 7.027130807eCl@ss 8.027130807eCl@ss 9.027130807
| Feature Name | Feature Value |
|---|---|
| Nominal voltage DC (EF008799) | 12 V |
