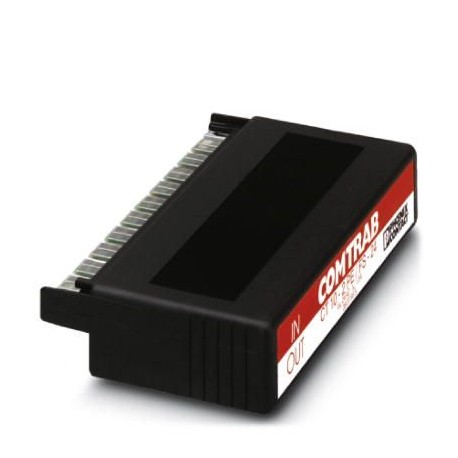

PHOENIX CONTACT CT 10-2PE/FS-24 CT 10-2PE/FS-24 2807955 PHOENIX CONTACT Surge protection plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CT 10-2PE/FS-24 2807955 PHOENIX CONTACT Surge protection plug

CT 10-2PE/FS-24

2807955

PHOENIX CONTACT

1 Pcs.

Surge protection plug LSA-PLUS (COMTRAB CT 10) connector with coarse/fine surge protection for 10 signal circuits driven without earth potential. Nominal voltage: 24 V DC. Version: 10 two-wire circuits

Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2807955
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 106 (C-6-2013)
GTIN4017918104740
Weight per Piece (excluding packing)125.150 g
Custom tariff number85363010
Country of originDE (Germany)

Dimensions

Height22 mm
Width111 mm
Depth68.5 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 75 °C
Degree of protectionIP20

General

Housing materialPBT
Flammability rating according to UL 94V0
Colorblack
Standards for cearances and creepage distancesVDE 0110-1
IEC 60664-1
Mounting typeOn CT-TERMIBLOCK and LSA-PLUS disconnect strip
TypeLSA-PLUS module
Direction of actionLine-Line & Line-Earth Ground
Arrester can be tested with CHECKMASTER from software version:From SW rev. 1.00

Protective circuit

IEC test classificationC1
C2
C3
D1
Nominal voltage UN24 V DC
Maximum continuous voltage UC40 V DC
28 V AC
Nominal current IN1.5 A (75 °C)
Operating effective current ICat UC≤ 5 µA (a-b)
Residual current IPE≤ 1 µA (per path)
Nominal discharge current In(8/20) µs (line-line)119 A (25 °C)
Nominal discharge current In(8/20) µs (line-earth)5 kA
Total surge current (8/20) µs10 kA
Max. discharge current Imax(8/20) µs maximum (line-line)119 A (25 °C)
Max. discharge current Imax(8/20) µs maximum (line-earth)5 kA
Nominal pulse current Ian (10/1000) µs (line-line)23 A (25 °C)
Output voltage limitation at 1 kV/µs (line-line) spike≤ 70 V
Output voltage limitation at 1 kV/µs (line-earth) spike≤ 650 V
Output voltage limitation at 1 kV/µs (line-line) static≤ 60 V
Output voltage limitation at 1 kV/µs (line-earth) static≤ 650 V
Residual voltage at In(line-line)≤ 85 V
Residual voltage with Ian (10/1000) µs (line-line)≤ 65 V
Response time tA(line-line)≤ 1 ns
Response time tA(line-earth)≤ 100 ns
Input attenuation aE, sym.0.1 dB (Typ. up to 2 MHz / 50 Ω)
0.1 dB (Typ. up to 1 MHz / 150 Ω)
0.1 dB (Typ. up to 400 kHz / 600 Ω)
Input attenuation aE, asym.
Cut-off frequency fg (3 dB), sym. in 50 Ohm system10 MHz (typ.)
Cut-off frequency fg (3 dB), sym. in 150 Ohm system4 MHz (typ.)
Cut-off frequency fg (3 dB), sym. in 600 Ohm system1 MHz (typ.)
Capacity (line-line)1.1 nF (f=1 MHz / VR= 0 V)
Capacity (line-earth)1 pF
Resistance in series
Surge protection fault messagenone
Impulse durability (line-earth)C1 - 1 kV/500 A
C2 - 10 kV/5 kA
C3 - 100 A
D1 - 2.5 kA

Connection data

Connection methodcan be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips
Connection method INCOMTRAB plug-in system
Connection method OUTCOMTRAB plug-in system

Standards and Regulations

Standards/regulationsIEC 61643-21
Standards/specificationsIEC 61643-21 2000

Classifications


ETIM for 2807955 Earthing, lightning and surge protection (EC000943)
Feature Name Feature Value
Nominal voltage DC (EF008799) 24 V
