View larger
Images are for illustrative purposes only. Please refer to data sheet for details

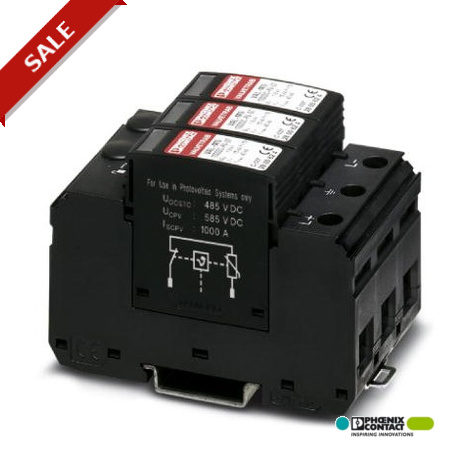

VAL-MS 1000DC-PV/2+V 2800628 PHOENIX CONTACT Surge arrester for 2-pos. isolated 1000 V DC voltage systems, f..
VAL-MS 1000DC-PV/2+V
2800628
PHOENIX CONTACT
1 Pcs.
Surge arrester for 2-pos. isolated 1000 V DC voltage systems, for DIN rail mounting, 3-pos. base element, three plug-in temperature-monitored protective elements, status message on each plug.
Surge protection device for isolated and grounded 2-pole photovoltaic 1000 V DC direct current systems, for rail mounting, 3-pole base element, three plug-in protection elements with temperature control, status message on each male connector.
Automation > Surge protection device for power supply systems
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Height | 90 mm |
|---|---|
| Width | 53.4 mm |
| Depth | 65.5 mm |
| Horizontal pitch | 3 Div. |
Ambient conditions
| Degree of protection | IP20 (only when all terminal points are used) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 60g (Half sine/11 ms/3x XYZ) |
| Vibration (operation) | 7.5g (5-500 Hz/2.5 h/XYZ) |
General
| Standards/specifications | EN 50539-11 2013 |
|---|---|
| IEC test classification | PV T2 |
| PV T2 | |
| Number of ports | One |
| SPD failure behavior | OCM (Open-circuit mode) |
| Connection configuration | Y configuration |
| SPD design | Voltage-limiting type |
| Installation location | Inside |
| Accessibility | Accessible |
| Installation location of the disconnect device | Internal |
| Mounting type | DIN rail: 35 mm |
| Color | jet black RAL 9005 |
| Housing material | PA 6.6-FR |
| PBT-FR | |
| Pollution degree | 2 |
| Distance between live and grounded parts | 8 mm |
| Flammability rating according to UL 94 | V-0 |
| Type | DIN rail module, two-section, divisible |
| Surge protection fault message | optical |
Additional descriptions
| Note | The device is intended for touch proof installation in a housing. Ensure that there is a gap of at least 8 mm between the active and grounded parts in the connection area. |
|---|
Protective circuit DC voltage side (DC)
| Maximum continuous operating voltage UCPV | 1170 V DC |
|---|---|
| Open circuit voltage UOCSTC | ≤ 970 V DC |
| Short-circuit current rating ISCPV | 1000 A |
| Continuous operating current ICPV | < 20 µA |
| Rated load current IL | 80 A |
| Residual current IPE | ≤ 20 µA DC |
| ≤ 250 µA AC | |
| Standby power consumption PC | ≤ 25 mVA |
| Nominal discharge current In(8/20) µs (L+) - (L-) | 15 kA |
| Nominal discharge current In(8/20) µs (L+) - PE | 15 kA |
| Nominal discharge current In(8/20) µs (L-) - PE | 15 kA |
| Maximum discharge current Imax(8/20) µs (L+) - (L-) | 40 kA |
| Maximum discharge current Imax(8/20) µs (L+) - PE | 40 kA |
| Maximum discharge current Imax(8/20) µs (L-) - PE | 40 kA |
| Total discharge current ITotal(8/20) µs | 40 kA |
| Voltage protection level Up(L+) - (L-) | ≤ 3.7 kV |
| Voltage protection level Up(L+) - PE | ≤ 3.7 kV |
| Voltage protection level Up(L-) - PE | ≤ 3.7 kV |
| Residual voltage Ures(L+) - (L-) | ≤ 3.7 kV (at In) |
| ≤ 3.1 kV (at 5 kA) | |
| ≤ 3.5 kV (at 10 kA) | |
| ≤ 4 kV (at 20 kA) | |
| ≤ 4.6 kV (at 30 kA) | |
| ≤ 5 kV (at 40 kA) | |
| Residual voltage Ures(L+) - PE | ≤ 3.7 kV (at In) |
| ≤ 3.1 kV (at 5 kA) | |
| ≤ 3.5 kV (at 10 kA) | |
| ≤ 4 kV (at 20 kA) | |
| ≤ 4.6 kV (at 30 kA) | |
| ≤ 5 kV (at 40 kA) | |
| Residual voltage Ures(L-) - PE | ≤ 3.7 kV (at In) |
| ≤ 3.1 kV (at 5 kA) | |
| ≤ 3.5 kV (at 10 kA) | |
| ≤ 4 kV (at 20 kA) | |
| ≤ 4.6 kV (at 30 kA) | |
| ≤ 5 kV (at 40 kA) | |
| Response time tA(L+) - (L-) | ≤ 25 ns |
| Response time tA(L+) - PE | ≤ 25 ns |
| Response time tA(L-) -PE | ≤ 25 ns |
| Insulation resistance Riso | > 5 GΩ (at 500 V DC) |
Connection data
| Connection method | Screw connection |
|---|---|
| Conductor cross section flexible min. | 1.5 mm² |
| Conductor cross section flexible max. | 25 mm² |
| Conductor cross section solid min. | 1.5 mm² |
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section AWG | 15 ... 2 |
| 10 ... 2 (UL) | |
| Screw thread | M5 |
| Tightening torque | 4.5 Nm |
| 30 lbf-in. (UL) | |
| Stripping length | 16 mm |
| Connection method | Biconnect terminal blocks |
| Conductor cross section flexible min. | 1.5 mm² |
| Conductor cross section flexible max. | 16 mm² |
| Screw thread | M5 |
UL specifications
| SPD Type | 4 (for Type 2 photovoltaic applications) |
|---|---|
| Maximum continuous operating voltage MCOV (L+) - (L-) | 1170 V DC |
| Maximum continuous operating voltage MCOV (L+) - G | 1170 V DC |
| Maximum continuous operating voltage MCOV (L-) - G | 1170 V DC |
| Nom. voltage | 970 V AC |
| Mode of protection | (L+) - (L-) |
| (L+) - G | |
| (L-) - G | |
| Power distribution system | 1 |
| Voltage protection rating VPR (L+) - (L-) | 2.5 kV |
| Voltage protection rating VPR (L+) - G | 2.5 kV |
| Voltage protection rating VPR (L-) -G | 2.5 kV |
| Nominal discharge current In(L+) - (L-) | 10 kA |
| Nominal discharge current In(L+) - G | 10 kA |
| Nominal discharge current In(L-) - G | 10 kA |
| Feature Name | Feature Value |
|---|---|
| System configuration DC (EF009926) | Yes |
| System configuration IT (EF009927) | No |
| Category type 2 (EF004230) | Yes |
