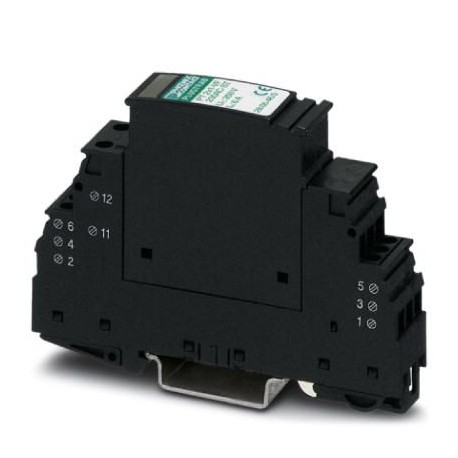

PHOENIX CONTACT PT 2X1-VF-230AC PT 2X1-VF-230AC 2805460 PHOENIX CONTACT Surge protection device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PT 2X1-VF-230AC 2805460 PHOENIX CONTACT Surge protection device

PT 2X1-VF-230AC

2805460

PHOENIX CONTACT

1 Pcs.

Surge protection device Rail mount surge arrester for high signal voltages. Leakage current-proof protection circuit for two signals without ground potential. Rated voltage:230 V AC

Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2805460
Packing unit10 pc
Catalog pagePage 114 (C-4-2017)
GTIN4046356460989
Weight per Piece (excluding packing)71.780 g
Custom tariff number85363010
Country of originDE (Germany)

Dimensions

Height44.8 mm
Width17.5 mm
Depth51.7 mm
Horizontal pitch1 Div.
Complete module height90 mm
Complete module width17.7 mm
Complete module depth65.5 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 80 °C
Degree of protectionIP20

General

Housing materialPA 6.6
Flammability rating according to UL 94V-0
Colorblack
Mounting typeDIN rail: 35 mm
TypeDIN rail module, two-section, divisible
Number of positions2
Direction of actionLine-Line & Line-Earth Ground

Protective circuit

IEC test classificationC1
C2
C3
D1
Nominal voltage UN230 V AC
Maximum continuous voltage UC250 V AC
Rated current6 A
Operating effective current ICat UC≤ 2 µA
Residual current IPE≤ 2 µA (at UN)
Nominal discharge current In(8/20) µs3 kA
Nominal discharge current In(8/20) µs (line-earth)3 kA
Pulse discharge current Iimp(10/350) µs500 A
Total discharge current Itotal(8/20) µs8 kA
Total discharge current Itotal(10/350) µs1 kA
Max. discharge current Imax(8/20) µs8 kA
Max. discharge current Imax(8/20) µs maximum (line-earth)8 kA
Nominal pulse current Ian (10/1000) µs (line-earth)100 A
Output voltage limitation at 1 kV/µs (line-earth) static≤ 1.4 kV
Residual voltage at In(line-line)≤ 2 kV
Residual voltage at In(line-earth)≤ 1 kV
Residual voltage with Ian (10/1000) µs (line-line)≤ 1.4 kV
Residual voltage with Ian (10/1000) µs (line-earth)≤ 700 V
Energy absorption150 J
Voltage protection level Up(line-line)≤ 2.5 kV (C2 - 4 kV / 2 kA)
≤ 1.8 kV (C3 - 100 A)
≤ 2.6 kV (D1 - 500 A)
Voltage protection level Up(line-earth)≤ 1.1 kV (C1 - 500 A)
≤ 1.5 kV (C2 - 4 kV / 2 kA)
≤ 1.6 kV (C3 - 100 A)
≤ 1.8 kV (D1 - 500 A)
Response time tA≤ 100 ns
Capacity (line-line)typ. 4.5 pF
Capacity (line-earth)typ. 9 pF
Resistance in series0 Ω
Surge protection fault messageoptical
Max. required back-up fuse6 A (gL / gG)
Impulse durability (line-earth)C2 - 4 kV/2 kA
C3 - 100 A
D1 - 500 A

Connection data

Connection methodScrew connection
Connection method INScrew terminal blocks
Connection method OUTScrew terminal blocks
Screw threadM3
Tightening torque0.8 Nm
Stripping length8 mm
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section AWG24 ... 12

Connection, equipotential bonding

Connection methodScrew connection
Tightening torque, min0.8 Nm

Remote indication contact

Switching functionN/C contact
Maximum operating voltage Umax.AC250 V AC
Max. operating current Imax1 A

Standards and Regulations

Standards/regulationsDIN EN 61643-21
Standards/specificationsDIN EN 61643-21 2002

Classifications


ETIM for 2805460 Earthing, lightning and surge protection (EC000943)
Feature Name Feature Value
Nominal voltage DC (EF008799) 230 V
