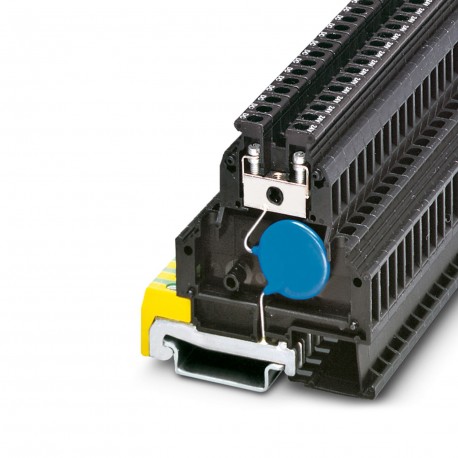

PHOENIX CONTACT TT-SLKK 5-C 3N3-230AC TT-SLKK 5-C 3N3-230AC 2798792 PHOENIX CONTACT EMC filter View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TT-SLKK 5-C 3N3-230AC 2798792 PHOENIX CONTACT EMC filter

TT-SLKK 5-C 3N3-230AC

2798792

PHOENIX CONTACT

1 Pcs.

EMC filter Terminal block with anti-parasitic capacitor between the active part and the rail, separate PE connection, capacity: 3.3 nF, installation on NS 35/7.5, terminal width: 6.2 mm, terminal height: 69 mm Terminal block with interference suppression capacitor between terminal body and DIN rail, separate PE connection, capacitance: 3.3 nF, mounting on NS 35/7.5, terminal width: 6.2 mm, terminal height: 69 mm

Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2798792
Packing unit50 pc
Catalog pagePage 113 (TT-2011)
GTIN4017918101480
Weight per Piece (excluding packing)19.260 g
Custom tariff number85363010
Country of originDE (Germany)

Dimensions

Height66.5 mm
Width6.2 mm
Depth69.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 85 °C
Degree of protectionIP20 (with end cover)

General

Housing materialPA
Flammability rating according to UL 94V-2
Colorjet black RAL 9005
Mounting typeDIN rail: 35 mm
TypeSingle-level terminal block – separate PE connection
Number of positions1
Direction of actionLine-Earth Ground

Protective circuit

Nominal voltage UN230 V AC
Maximum continuous voltage UC250 V AC
Rated current30 A (45°C)
Residual current IPEtyp. 0.5 mA
Cut-off frequency fg (3 dB), asym. (PE) in 50 Ohm systemtyp. 2 MHz
Cut-off frequency fg (3 dB), asym. (PE) in 150 Ohm systemtyp. 550 kHz (50 Hz)
Cut-off frequency fg (3 dB), asym. (PE) in 600 Ohm systemtyp. 170 kHz
Capacity (line-earth)typ. 3.3 nF

Connection data

Connection methodScrew connection
Connection method INScrew terminal blocks
Connection method OUTScrew terminal blocks
Screw threadM3
Tightening torque0.5 Nm
Stripping length8 mm
Conductor cross section flexible0.2 mm² ... 4 mm²
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section AWG24 ... 12

Standards and Regulations

Standards/specificationsEN 60947-7-1 2009
EN 60947-4-2 2009
EN 60384-14

Environmental Product Compliance

REACh SVHC4-Nonylphenol, ethoxylated
Lead 7439-92-1

Classifications


ETIM for 2798792 Earthing, lightning and surge protection (EC000943)
Feature Name Feature Value
Nominal voltage DC (EF008799) 230 V
