TT-SLKK 5-C 12N-230AC 2748069 PHOENIX CONTACT EMC filter

TT-SLKK 5-C 12N-230AC

2748069

PHOENIX CONTACT

1 Pcs.

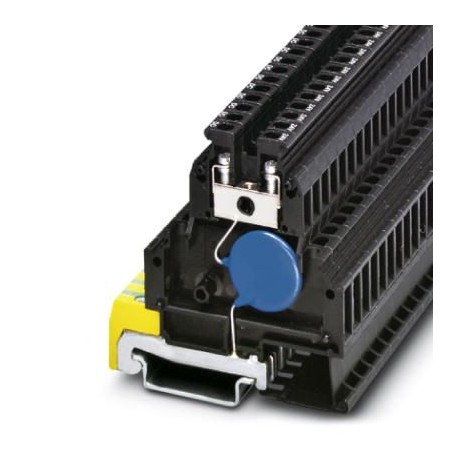

EMC filter Terminal block with anti-parasitic capacitor between the active part and the rail, separate PE connection, capacity: 12 nF, installation on NS 35/7.5, terminal width: 6.2 mm, terminal height: 69 mm

Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2748069
Packing unit50 pc
Catalog pagePage 113 (TT-2011)
GTIN4017918062316
Weight per Piece (excluding packing)21.290 g
Custom tariff number85363010
Country of originDE (Germany)

Dimensions

Height66.5 mm
Width6.2 mm
Depth69.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 85 °C
Degree of protectionIP20 (with end cover)

General

Housing materialPA
Flammability rating according to UL 94V-2
Colorjet black RAL 9005
Mounting typeDIN rail: 35 mm
TypeSingle-level terminal block – separate PE connection
Number of positions1
Direction of actionLine-Earth Ground

Protective circuit

Nominal voltage UN230 V AC
Maximum continuous voltage UC250 V AC
Rated current30 A (45°C)
Residual current IPEtyp. 1.5 mA
Cut-off frequency fg (3 dB), asym. (PE) in 50 Ohm systemtyp. 500 kHz
Cut-off frequency fg (3 dB), asym. (PE) in 150 Ohm systemtyp. 150 kHz
Cut-off frequency fg (3 dB), asym. (PE) in 600 Ohm systemtyp. 40 kHz
Capacity (line-earth)typ. 12 nF
Surge protection fault messagenone

Connection data

Connection methodScrew connection
Connection method INScrew terminal blocks
Connection method OUTScrew terminal blocks
Screw threadM3
Tightening torque0.5 Nm
Stripping length8 mm
Conductor cross section flexible0.2 mm² ... 4 mm²
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section AWG24 ... 12

Standards and Regulations

Standards/specificationsEN 60947-7-1 2009
EN 60947-4-2 2009
EN 60384-14

Environmental Product Compliance

REACh SVHC4-Nonylphenol, ethoxylated
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2748069 Earthing, lightning and surge protection (EC000943)
Feature Name Feature Value
Nominal voltage DC (EF008799) 230 V

Product Datasheet
