View larger
Images are for illustrative purposes only. Please refer to data sheet for details

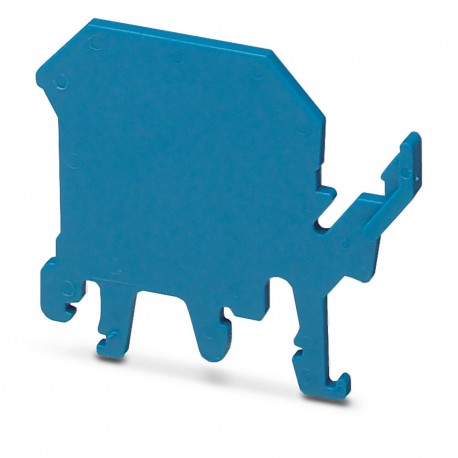

UAB 3032428 PHOENIX CONTACT Support bracket
UAB
3032428
PHOENIX CONTACT
50 Pcs.
Support bracket
Easel, number of poles: 1, color: blue
Support bracket, number of positions: 1, color: blue
Automation > Busbar support
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Support bracket |
| Number of positions | 1 |
| Pitch | 200 mm |
| Data management status | |
| Article revision | 01 |
Dimensions
| Width | 2 mm |
| Height | 56 mm |
| Depth on NS 32 | 47 mm |
| Depth on NS 35/7,5 | 42 mm |
| Depth on NS 35/15 | 49.5 mm |
| Pitch | 200 mm |
Material specifications
| Color | blue (RAL 5015) |
| Flammability rating according to UL 94 | V2 |
| Insulating material | PA |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 1 |
