View larger
Images are for illustrative purposes only. Please refer to data sheet for details

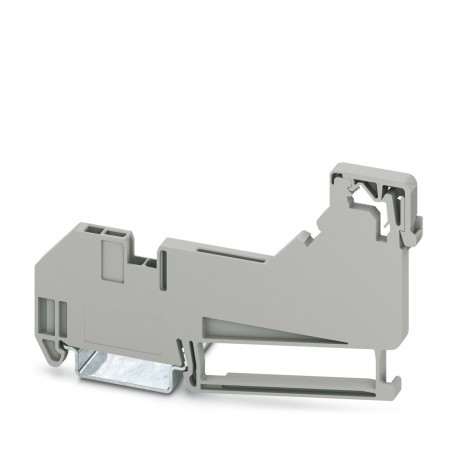

AB-SK TOP INSULATED 3062074 PHOENIX CONTACT Support bracket
AB-SK TOP INSULATED
3062074
PHOENIX CONTACT
10 Pcs.
Support bracket
Stand, Busbar support, place every 20 cm, length: 102.4 mm, width: 5.2 mm, number of poles: 2, color: gray, mounting class: Rail mounting
Support bracket, Bracket for busbars, set every 20 cm, width: 5.2 mm, height: 102.4 mm, number of positions: 2, color: gray, mounting type: DIN rail mounting
Automation > Busbar support
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Assembly note | isolated from NS 35 |
Product properties
| Product type | Support bracket |
| Number of positions | 2 |
| Data management status | |
| Article revision | 00 |
Electrical properties
| Nominal current IN | 0 A |
Dimensions
| Width | 5.2 mm |
| Height | 102.4 mm |
| Depth on NS 35/7,5 | 63.2 mm |
| Depth on NS 35/15 | 70.7 mm |
Material specifications
| Color | gray (RAL 7042) |
| Material | PA |
| Insulating material | PA |
| Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting type | DIN rail mounting |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 2 |
| Max. rated current (EF007926) | 0 A |
| Busbar distance (EF002638) | 65 mm |
