View larger
Images are for illustrative purposes only. Please refer to data sheet for details

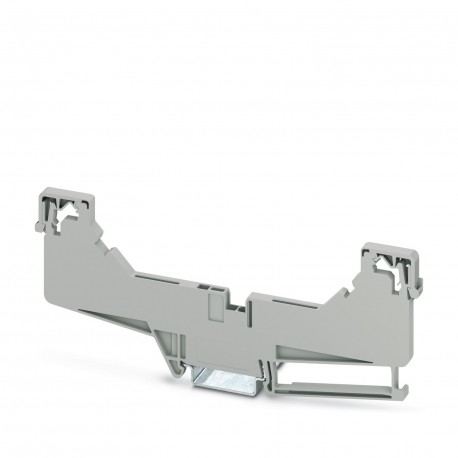

AB-SK-D TOP INSULATED 3062087 PHOENIX CONTACT Support bracket
AB-SK-D TOP INSULATED
3062087
PHOENIX CONTACT
10 Pcs.
Support bracket
Stand, Busbar support, place every 20 cm, length: 155.8 mm, width: 5.2 mm, number of poles: 2, color: gray, mounting class: Rail mounting
Support block, Busbar holder, to be fixed every 20 cm, width: 5.2 mm, height: 155.8 mm, number of poles: 2, colour: grey, mounting type: DIN rail mounting
Automation > Busbar support
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3062087 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 617 (C-3-2017) |
| GTIN | 4046356591850 |
| Weight per Piece (excluding packing) | 23.140 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.023150301eCl@ss 4.123150301eCl@ss 5.027141143eCl@ss 5.127141100eCl@ss 6.027409200eCl@ss 7.027409221eCl@ss 8.027409221eCl@ss 9.027400607
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 2 |
| Max. rated current (EF007926) | 0 A |
| Busbar distance (EF002638) | 65 mm |
