View larger
Images are for illustrative purposes only. Please refer to data sheet for details

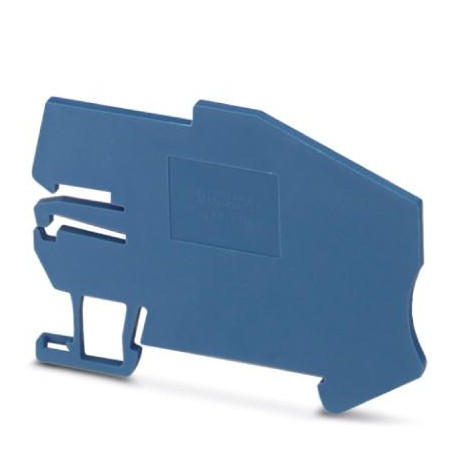

AB-PTI 6 3214008 PHOENIX CONTACT Support bracket
AB-PTI 6
3214008
PHOENIX CONTACT
50 Pcs.
Support bracket
Easel, Busbar holder, place every 20 cm, pitch: 200 mm, length: 69.4 mm, width: 2 mm, height: 48.5 mm, number of poles: 1, color: blue
Automation > Busbar support
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3214008 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 112 (C-1-2017) |
| GTIN | 4046356627085 |
| Weight per Piece (excluding packing) | 5.940 g |
| Custom tariff number | 85472000 |
| Country of origin | DE (Germany) |
General
| Color | blue |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Material | PA |
| Result | Test passed |
| Flame test method (DIN EN 60695-11-10) | V0 |
| Oxygen index (DIN EN ISO 4589-2) | >32 % |
| Class I | 2 |
| Class F | 2 |
| Surface flammability (ASTM E 162) | passed |
| Specific optical density of smoke (ASTM E 662) | passed |
| Smoke gas toxicity (SMP 800C) | passed |
| Heat dissipation calorimetric (ASTM E 1354) | 28 MJ/kg |
| R22 | HL 1 - HL 3 |
| R23 | HL 1 - HL 3 |
| R24 | HL 1 - HL 3 |
| R26 | HL 1 - HL 3 |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
|---|---|
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.023150301eCl@ss 4.123150301eCl@ss 5.027141143eCl@ss 5.127141100eCl@ss 6.027400600eCl@ss 7.027400607eCl@ss 8.027400607eCl@ss 9.027400607
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 1 |
