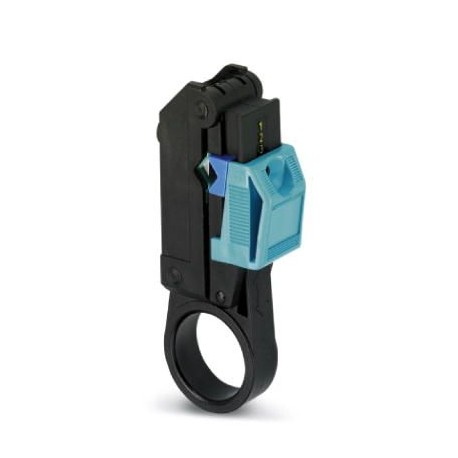

WIREFOX-D CX-9 1212171 PHOENIX CONTACT Stripping tool
WIREFOX-D CX-9
1212171
PHOENIX CONTACT
1 Pcs.
Stripping tool
Cable strippers for coaxial cable with Ø 2.5 - 7.6 mm, 3 levels, insulation dimensions 3.5 and 7.5 mm
Tools > Wire stripper pliers
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1212171 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 414 (C-3-2017) |
| GTIN | 4046356454391 |
| Weight per Piece (excluding packing) | 77.800 g |
| Custom tariff number | 82032000 |
| Country of origin | SE (Sweden) |
Dimensions
| Length (b) | 90 mm |
|---|---|
| Width (a) | 25.5 mm |
| Height (c) | 37.5 mm |
| Cable diameter | 2.5 mm ... 7.6 mm |
| Stripping length | 7.5 mm |
Environmental Product Compliance
| California Proposition 65 | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
|---|
Classifications
eCl@ss 10.0.121043706eCl@ss 4.021040301eCl@ss 4.121040301eCl@ss 5.021040301eCl@ss 5.121040300eCl@ss 6.021043700eCl@ss 7.021043706eCl@ss 8.021043706eCl@ss 9.021043706
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 90 mm |
| Strip range cross-section (EF007568) | 0 mm² |
| Strip range diameter (EF007567) | 2.5 mm |
| Strip length adjustable (EF006222) | Yes |
| Depth of notch adjustable (EF005931) | Yes |
| Self-adjusting (EF022889) | No |
| Jaw length (EF005953) | 15.5 mm |
| Head width (EF006645) | 25.5 mm |
| Head height (EF025409) | 37.5 mm |
| Longitudinal section (EF001805) | No |
| Round edge (EF001806) | Yes |
| Spiral cut (EF005299) | No |
| With wire cutter (EF000163) | No |
| Insulated (EF000019) | Yes |
| Isolation protection 1000 V (EF001463) | No |
| Handle cover (EF013792) | Plastic grips |
| Grip design (EF007841) | 1-component |
| Surface protection (EF000139) | Untreated |
| Surface treatment (EF025109) | Untreated |
| ESD tested (EF009014) | No |
| With impact protection (EF007939) | Yes |
| Weight (EF000167) | 90 g |
| VDE tested (EFDE0001) | No |
