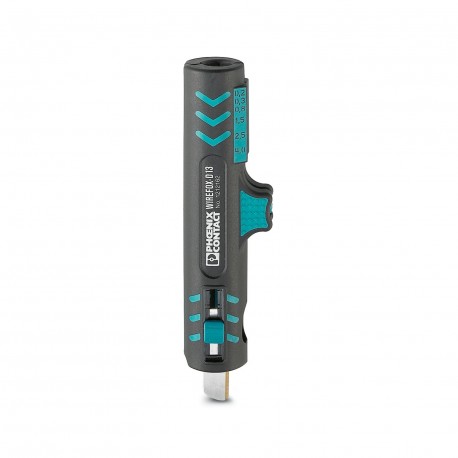

WIREFOX-D 13 1212162 PHOENIX CONTACT Stripping tool
WIREFOX-D 13
1212162
PHOENIX CONTACT
1 Pcs.
Stripping tool
Wire strippers, for removing installation cables from a Ø of 8 - 13 mm, e.g. NYM 3 x 1.5 mm² to 5 x 2.5 mm², insulation of individual conductors 0.2 mm² - 4 mm², with longitudinal cutting blade and sliding knife
Stripping tool, for stripping installation lines of Ø 8 - 13 mm , e.g. NYM 3 x 1.5 mm2 to 5 x 2.5 mm2, single line stripping 0.2 mm2 - 4 mm2 , with longitudinal cut blade and sliding knife
Tools > Wire stripper pliers
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Environmental Product Compliance | |
| California Proposition 65 | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
Product properties
| Product type | Stripping tool |
| Application | Standard |
Connection data
| Conductor connection | |
| Cross section range, metric | 0.2 mm² ... 4 mm² |
| Cross section range AWG | 24 ... 12 |
| Stripping length | 100 mm |
Dimensions
| Width | 27.5 mm |
| Height | 37 mm |
| Length | 125 mm |
| External dimensions | |
| Outside diameter | 8 mm ... 13 mm |
Material specifications
| Color | multicolored |
Cable/line
| External cable diameter | 8 mm ... 13 mm |
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 125 mm |
| Strip range cross-section (EF007568) | 0.2 mm² |
| Strip range diameter (EF007567) | 8 mm |
| Strip length adjustable (EF006222) | No |
| Depth of notch adjustable (EF005931) | No |
| Self-adjusting (EF022889) | No |
| Jaw length (EF005953) | 0 mm |
| Head width (EF006645) | 25 mm |
| Head height (EF025409) | 37 mm |
| Longitudinal section (EF001805) | No |
| Round edge (EF001806) | Yes |
| Spiral cut (EF005299) | No |
| With wire cutter (EF000163) | No |
| Insulated (EF000019) | Yes |
| Isolation protection 1000 V (EF001463) | No |
| Handle cover (EF013792) | Plastic grips |
| Grip design (EF007841) | 2-components |
| Surface protection (EF000139) | Untreated |
| Surface treatment (EF025109) | Untreated |
| ESD tested (EF009014) | No |
| With impact protection (EF007939) | Yes |
| Weight (EF000167) | 46.5 g |
| VDE tested (EFDE0001) | No |
