View larger
Images are for illustrative purposes only. Please refer to data sheet for details

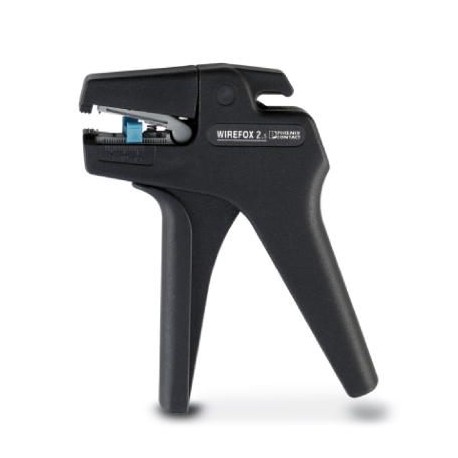

WIREFOX 2,5 1212368 PHOENIX CONTACT Stripping tool
WIREFOX 2,5
1212368
PHOENIX CONTACT
1 Pcs.
Stripping tool
Wire strippers, for cables and conductors with a conductor cross-section of 0.08 to 2.5 mm², self-adjusting, stripping length adjustable up to 15 mm, cutting capacity: up to 6 mm² flexible/ up to 1.5 mm² rigid
Tools > Wire stripper pliers
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1212368 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 406 (C-3-2017) |
| GTIN | 4046356456128 |
| Weight per Piece (excluding packing) | 177.800 g |
| Custom tariff number | 82032000 |
| Country of origin | GB (United Kingdom) |
Environmental Product Compliance
| California Proposition 65 | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
|---|
Classifications
eCl@ss 10.0.121043706eCl@ss 4.021040301eCl@ss 4.121040301eCl@ss 5.021040301eCl@ss 5.121040300eCl@ss 6.021043700eCl@ss 7.021043706eCl@ss 8.021043706eCl@ss 9.021043706
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 160 mm |
| Strip range cross-section (EF007568) | 0.08 mm² |
| Strip range diameter (EF007567) | 0.3 mm |
| Strip length adjustable (EF006222) | Yes |
| Depth of notch adjustable (EF005931) | No |
| Self-adjusting (EF022889) | Yes |
| Jaw length (EF005953) | 5 mm |
| Head width (EF006645) | 16.5 mm |
| Head height (EF025409) | 36 mm |
| Longitudinal section (EF001805) | No |
| Round edge (EF001806) | No |
| Spiral cut (EF005299) | No |
| With wire cutter (EF000163) | Yes |
| Insulated (EF000019) | Yes |
| Isolation protection 1000 V (EF001463) | No |
| Handle cover (EF013792) | Plastic grips |
| Grip design (EF007841) | 1-component |
| Surface protection (EF000139) | Untreated |
| Surface treatment (EF025109) | Untreated |
| ESD tested (EF009014) | No |
| With impact protection (EF007939) | Yes |
| Weight (EF000167) | 160 g |
| VDE tested (EFDE0001) | No |
