View larger
Images are for illustrative purposes only. Please refer to data sheet for details

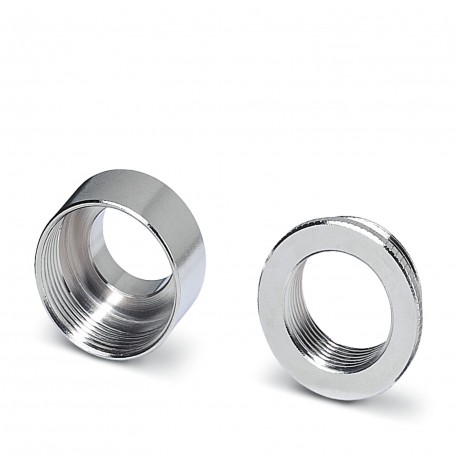

ENLAR-M-KV-M25/M32 1647679 PHOENIX CONTACT Extension adapter
ENLAR-M-KV-M25/M32
1647679
PHOENIX CONTACT
10 Pcs.
Extension adapter
Expansion adapter, material: Brass, nickel-plated, connection thread: M25 x 1.5, color: silver, with O-ring
Expansion adapter, connection thread: M25 x 1.5, color: silver, with O-ring
Cables > Enlargement/reducing ring
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1647679 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 709 (C-2-2017) |
| GTIN | 4017918947088 |
| Weight per Piece (excluding packing) | 29.050 g |
| Custom tariff number | 74153300 |
| Country of origin | DE (Germany) |
Dimensions
| Length | 21 mm |
|---|---|
| Length without connecting thread | 14.5 mm |
| Connecting thread diameter | 25 mm |
| Hexagon angular dimension | 34 mm |
| Length of the connecting thread | 6.5 mm |
Ambient conditions
| Degree of protection (IP) | IP65 (Depends on the screw connection used) |
|---|---|
| Ambient temperature (operation) | -20 °C ... 80 °C |
General
| Material | Brass, nickel-plated |
|---|---|
| Cable gland material | Nickel-plated brass |
| O-ring material | NBR |
| Outer thread | M25 |
| Internal thread | M32 |
| Color | silver |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027141209eCl@ss 4.127141209eCl@ss 5.027149109eCl@ss 5.127149100eCl@ss 6.027149100eCl@ss 7.027439207eCl@ss 8.027439207eCl@ss 9.027430314
| Feature Name | Feature Value |
|---|---|
| Thread type inner thread (EF005703) | Metric |
| Thread size inner thread (metric) (EF003719) | 32 |
| Thread type outer thread (EF005704) | Metric |
| Thread size outer thread (metric) (EF003720) | 25 |
| Thread size PG outer thread (EF006447) | 29 |
| Nickel-plated (EF001206) | No |
| Explosion-proof (EF004663) | No |
