View larger
Images are for illustrative purposes only. Please refer to data sheet for details

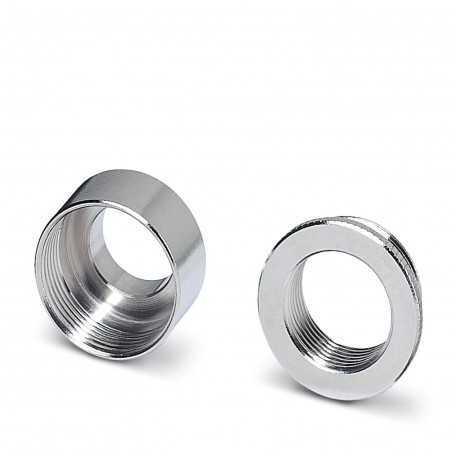

ENLAR-M-KV-M20/M25 1647666 PHOENIX CONTACT Extension adapter
ENLAR-M-KV-M20/M25
1647666
PHOENIX CONTACT
10 Pcs.
Extension adapter
Expansion adapter, material: Brass, nickel-plated, connection thread: M20 x 1.5, color: silver, with O-ring
Extension adapter, connecting thread: M20 x 1.5, color: silver, with O-ring
Cables > Enlargement/reducing ring
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Extension adapter |
| Data management status | |
| Article revision | 00 |
Dimensions
| Dimensional drawing |  |
| Length | 19 mm |
| Length of the connecting thread | 6.5 mm |
| Length without connecting thread | 12.5 mm |
| Diameter | 20 mm |
| Connecting thread diameter | 20 mm |
| Hexagon angular dimension | 27 mm |
| Thread type connection side | M20 x 1.5 |
| Thread pitch | 1.5 mm |
| Thread type on seal side | M25 |
Material specifications
| Material | Brass, nickel-plated |
| Seal material O-ring | NBR |
Cable/line
| External cable diameter | 15 mm |
| Halogen-free | no |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 (Depends on the screw connection used) |
| Ambient temperature (operation) | -20 °C ... 80 °C |
Mounting
| Assembly note | With corresponding screw connection: IP68 |
| Feature Name | Feature Value |
|---|---|
| Thread type inner thread (EF005703) | Metric |
| Thread size inner thread (metric) (EF003719) | 25 |
| Thread type outer thread (EF005704) | Metric |
| Thread size outer thread (metric) (EF003720) | 20 |
| Thread size PG outer thread (EF006447) | 29 |
| Nickel-plated (EF001206) | No |
| Explosion-proof (EF004663) | No |
