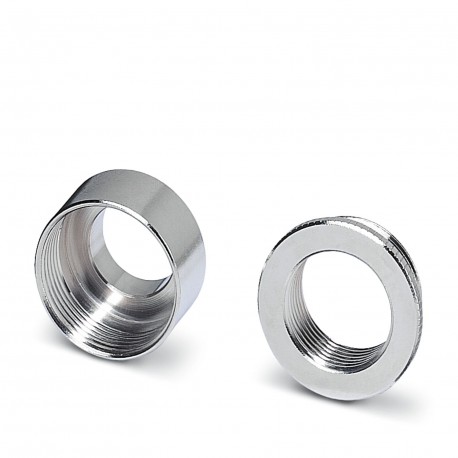

PHOENIX CONTACT REDUC-M-KV-M20/M16 REDUC-M-KV-M20/M16 1647611 PHOENIX CONTACT Reducing adapter View larger
Images are for illustrative purposes only. Please refer to data sheet for details

REDUC-M-KV-M20/M16 1647611 PHOENIX CONTACT Reducing adapter

REDUC-M-KV-M20/M16

1647611

PHOENIX CONTACT

10 Pcs.

Reducing adapter Reduction adapter, material: Brass, nickel-plated, connection thread: M20 x 1.5, color: silver, with O-ring Reducing adapter, connecting thread: M20 x 1.5, color: silver, with O-ring

Cables > Enlargement/reducing ring
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeReducing adapter
Seal presentyes
Data management status
Article revision00
Connection data
Tightening torque2.5 ... 2.7 Nm
Dimensions
Dimensional drawingnqorxkfaop.jpg
Width24.00 mm
Length9 mm
Length of the connecting thread6.5 mm
Length without connecting thread2.5 mm
Diameter20 mm
Connecting thread diameter20 mm
Hexagon angular dimension24 mm
Thread type connection sideM20 x 1.5
Thread pitch1.5 mm
Thread type on seal sideM16
Material specifications
ColorBrass color
MaterialBrass, nickel-plated
Seal materialNBR
Housing surface materialNi
Cable/line
Halogen-freeno
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65 (Depends on the screw connection used)
Ambient temperature (operation)-20 °C ... 80 °C
Mounting
Assembly noteWith corresponding screw connection: IP68
