View larger
Images are for illustrative purposes only. Please refer to data sheet for details

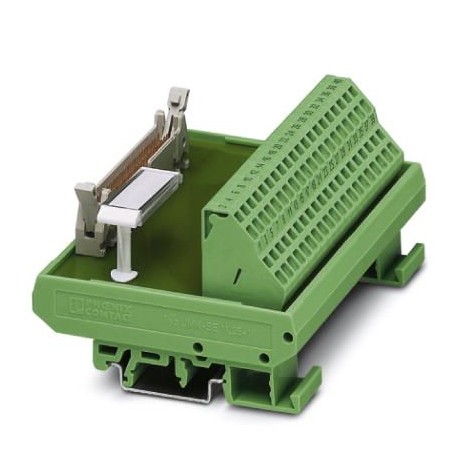

FLKM 26/ZFKDS 2302926 PHOENIX CONTACT Interface module
FLKM 26/ZFKDS
2302926
PHOENIX CONTACT
1 Pcs.
Interface module
FLK 1:1 standard module, spring-loaded and pluggable flat cable connector, number of poles 26
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2302926 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 302 (IF-2011) |
| GTIN | 4017918941499 |
| Weight per Piece (excluding packing) | 105.560 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. perm. operating voltage | < 50 V AC |
|---|---|
| 60 V DC | |
| Max. perm. current (per branch) | 1 A |
| Number of positions | 26 |
| Mounting position | any |
| Degree of protection | IP20 |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Spring-cage connection |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK pin strip |
| Number of connections | 1 |
| Number of positions | 26 |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| DIN EN 50178 | |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV |
| Insulation | Functional insulation |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
