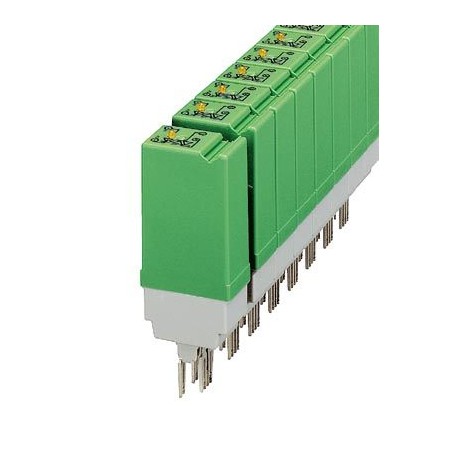

ST-OV3- 24DC/240AC/3 2903231 PHOENIX CONTACT Solid-state relays
ST-OV3-24DC/240AC/3
2903231
PHOENIX CONTACT
1 Pcs.
Solid-state relays
Pluggable solid-state power relay, with indicator light and protection circuit in input and output circuit, input: 24 V DC, output: 24-280 V AC/max. 3 A, pluggable to base terminal blocks
Automation > Optocoupler
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2903231 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 92 (IF-2005) |
| GTIN | 4017918079017 |
| Weight per Piece (excluding packing) | 55.500 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.2 |
| Input voltage range | 19.2 V DC ... 28.8 V DC |
| Switching threshold "0" signal in reference to UN | ≤ 0.4 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 7 mA |
| Typical response time | switch-on time: Max. one half cycle - zero-voltage crossing |
| Typical turn-off time | switch-off time Max. one half cycle - zero-current crossing |
| Operating voltage display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Protective circuit/component | Polarity protection diode |
| Transmission frequency | 25 Hz |
Output data
| Output voltage range | 24 V AC ... 280 V AC |
|---|---|
| Limiting continuous current | 3 A (see derating curve) |
| Min. load current | 50 mA |
| Leakage current | 5 mA (in off state - components with low minimum load and leakage currents on request.) |
| Surge current | 35 A (t = 10 ms) |
| Max. load value | 6 A2s (I2x t at t = 8.3 ms) |
| Peak offstate voltage | 600 V |
| Voltage drop at max. limiting continuous current | 1.5 V |
| Output circuit | 2-wire, floating |
| Protective circuit/component | RC element |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Input voltage (EF003840) | 19.2 V |
| Output voltage (EF003933) | 24 V |
| Rated operation current Ie (EF001443) | 3 A |
| Type of digital output (EF003601) | Electronic |
| With LED indication (EF005950) | Yes |
