ST-OV2-24DC/ 24DC/5

2905491

PHOENIX CONTACT

1 Pcs.

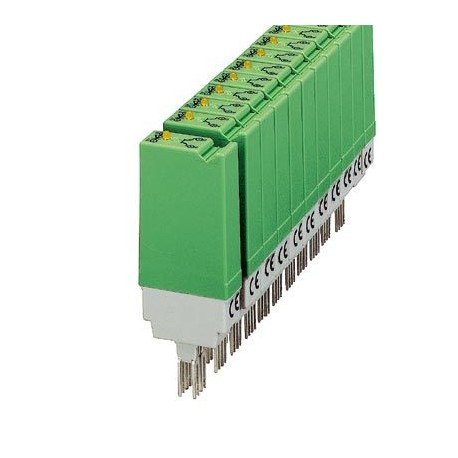

Solid-state relays Pluggable solid-state power relay, with indicator light and protection circuit in input and output circuit, input: 24 V DC, output: 3-30 V DC/max. 5 A, pluggable to base terminal blocks

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2905491
Packing unit10 pc
Catalog pagePage 91 (IF-2005)
GTIN4017918079444
Weight per Piece (excluding packing)34.390 g
Custom tariff number85364190
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width14.6 mm
Height33 mm
Depth66.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

Input data

Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range19.2 V DC ... 28.8 V DC
Switching threshold "0" signal in reference to UN≤ 0.4
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN7 mA
Typical response time50 µs
Typical turn-off time200 µs
Status displayYellow LED
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode
Transmission frequency300 Hz

Output data

Output voltage range3 V DC ... 30 V DC
Limiting continuous current5 A (see derating curve)
Peak offstate voltage30 V DC (Collector-emitter reverse voltage)
Voltage drop at max. limiting continuous current0.3 V
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode

General

Test voltage input/output2.5 kV AC
Mounting positionany
Standards/regulationsIEC 60664
IEC 60664A
DIN VDE 0110

Standards and Regulations

Standards/regulationsIEC 60664
IEC 60664A
DIN VDE 0110

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2905491 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 19.2 V
Output voltage (EF003933) 3 V
Rated operation current Ie (EF001443) 5 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
