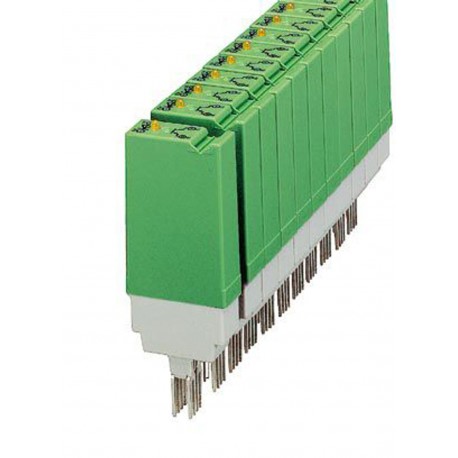

PHOENIX CONTACT ST-OV2-110DC/ 60DC/1 ST-OV2-110DC/ 60DC/1 2905051 PHOENIX CONTACT Solid-state relays View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ST-OV2-110DC/ 60DC/1 2905051 PHOENIX CONTACT Solid-state relays

ST-OV2-110DC/ 60DC/1

2905051

PHOENIX CONTACT

1 Pcs.

Solid-state relays Pluggable solid-state power relay, with indicator light and protection circuit in input and output circuit, input: 110 V DC, output: 12-60 V DC/max. 1 A, pluggable to base terminal blocks Plug-in power solid-state relay, with LED and protective circuit in input and output circuits, input: 110 V DC, output: 12 - 60 V DC/max. 1 A, can be plugged into basic terminal blocks

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSingle solid-state relay
Data management status
Date of last data management03.05.2024
Article revision06
Electrical properties
Test voltage (Input/output)2.5 kV AC (Input/output)
Input data
Nominal input voltage UN110 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range88 V DC ... 132 V DC
Switching threshold "0" signal in reference to UN≤ 0.4
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN6 mA
Typical response time20 µs
Typical turn-off time200 µs
Status displayLED (yellow)
Protective circuitReverse polarity protection; Polarity protection diode
Surge protection
Transmission frequency500 Hz
Output data
Design of digital outputelectronic
Output voltage range12 V DC ... 60 V DC
Limiting continuous current1 A (see derating curve)
Surge current5 A (t = 1 s)
Peak offstate voltage60 V DC (Collector-emitter reverse voltage)
Voltage drop at max. limiting continuous current1.2 V
Output circuit2-conductor, floating
Protective circuitReverse polarity protection; Polarity protection diode
Surge protection
Dimensions
Width14.6 mm
Height33 mm
Depth66.5 mm
Material specifications
Colorgreen (RAL 6021)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Standards and regulations
Standards/regulationsDIN VDE 0110b, Gr. C for 250 V DC
DIN VDE 0160 (in relevant parts)
Mounting
Mounting positionany

ETIM for 2905051 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 88 V
Output voltage (EF003933) 12 V
Rated operation current Ie (EF001443) 1 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
