ST-OE2-24DC/ 48DC/100

2911692

PHOENIX CONTACT

1 Pcs.

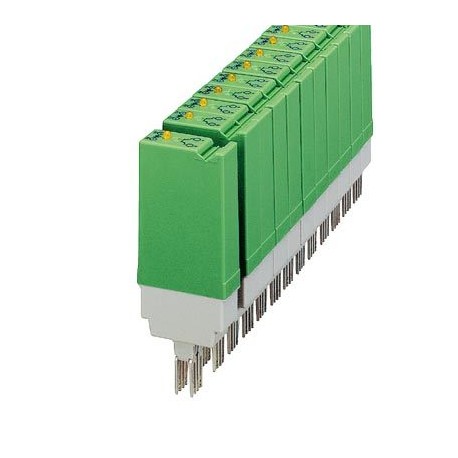

Solid-state relays Pluggable solid-state input relay, with indicator light and protection circuit protection circuit in input and output circuit, input: 24 V DC, output: 8 - 48 V DC/max. 100 mA, pluggable to base terminal blocks

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2911692
Packing unit10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 93 (IF-2005)
GTIN4017918079710
Weight per Piece (excluding packing)22.610 g
Custom tariff number85364190
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width14.6 mm
Height33 mm
Depth66.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

Input data

Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.9 ... 1.1
Input voltage range21.6 V DC ... 26.4 V DC
Switching threshold "0" signal in reference to UN≤ 0.4
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN9 mA
Typical response time20 µs
Typical turn-off time100 µs
Status displayYellow LED
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode
RC element
Transmission frequency500 Hz

Output data

Output voltage range8 V DC ... 48 V DC
Limiting continuous current100 mA
Voltage drop at max. limiting continuous current0.9 V
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode

General

Test voltage input/output2.5 kV AC
Mounting positionany
Standards/regulationsDIN VDE 0110

Standards and Regulations

Standards/regulationsDIN VDE 0110

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2911692 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 21.6 V
Output voltage (EF003933) 8 V
Rated operation current Ie (EF001443) 0.1 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
