View larger
Images are for illustrative purposes only. Please refer to data sheet for details

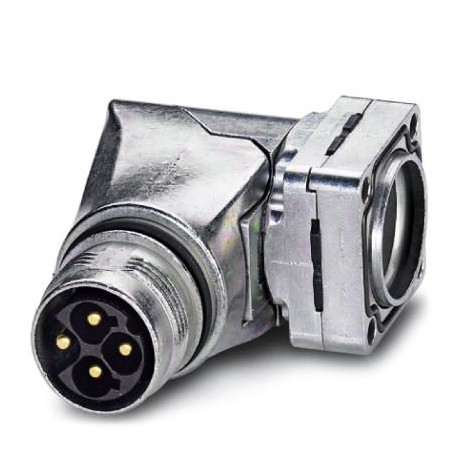

ST-3EP1N8AAC00S 1607672 PHOENIX CONTACT Device connector, front mounting
ST-3EP1N8AAC00S
1607672
PHOENIX CONTACT
16 Pcs.
Device connector, front mounting
Conect. plug. to be apar. front wall, Swivel angle, SPEEDCON, M17, number of poles: 3+PE, contact type: Male, Axial O-ring, 4x Ø2.7, shielded: yes, flange size: 25 mm x 25 mm, protection index: IP67, number of poles: 4, connection type: Crimped connection, series: ST
Cables > Circular connector, mounting (without cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1607672 |
|---|---|
| Packing unit | 16 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356273794 |
| Weight per Piece (excluding packing) | 83.800 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Note | Order information: Order crimp contacts Ø 2 mm separately |
|---|---|
| Type of locking | SPEEDCON locking |
| Direction of rotation of contact chamber numbering | Standard |
| Coding | N |
| Contact connection method | Crimp connection |
| Type of contacts | Pin |
| Number of positions | 4 |
| Contact diameter of power contacts | 2 mm |
| Nominal current per power contact at 25°C | 25 A |
| Contact diameter of signal contacts | 2 mm |
| Pg housing screw connection | none |
| Mounting type | 4x Ø2,7 |
Material
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
|---|---|
| Insulator material | PA 6.6 |
| Gasket and O-ring material | FPM |
Specifications according to DIN EN 61984:2001
| Installation height max. | 3000 m |
|---|---|
| Nominal / operating voltage of power contacts | 630 V |
| Rated surge voltage of power contacts | 6 kV |
| Overvoltage category of power contacts | III |
| Degree of pollution of power contacts | 3 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027143424eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440102eCl@ss 8.027440102eCl@ss 9.027440103
| Feature Name | Feature Value |
|---|---|
| With shield connection (EF002535) | Yes |
| Number of poles (EF001391) | 4 |
| Number of control contacts (EF012217) | 4 |
| With PE-connection (EF005600) | No |
| Housing material (EF001596) | Other |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| With thread (EF003723) | Yes |
