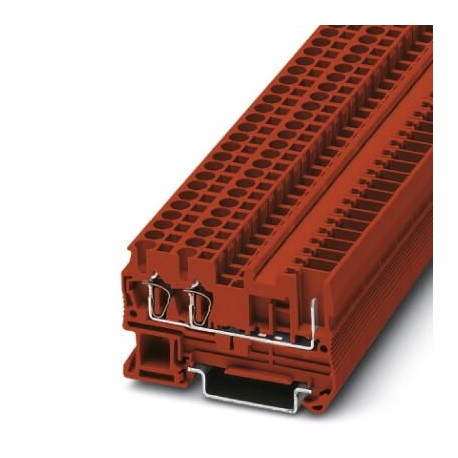

PHOENIX CONTACT ST 2,5-TWIN/ 1P RD ST 2,5-TWIN/ 1P RD 3061237 PHOENIX CONTACT Feed-through terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ST 2,5-TWIN/ 1P RD 3061237 PHOENIX CONTACT Feed-through terminal block

ST 2,5-TWIN/ 1P RD

3061237

PHOENIX CONTACT

50 Pcs.

Feed-through terminal block Feed-through terminal, nominal voltage: 500 V, nominal current: 24 A, number of connections: 3, number of poles: 1, connection type: Spring connection / plug-in connection, 1st floor, left-hand connection, Sizing section: 2.5 mm², cross-section: 0.08 mm² - 4 mm², 1st floor, right-hand connection, mounting class: NS 35/7.5, NS 35/15, Color: Red

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3061237
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4046356428224
Weight per Piece (excluding packing)7.410 g
Custom tariff number85369010
Country of originDE (Germany)

General

Number of positions1
Number of levels1
Number of connections3
Potentials1
Nominal cross section2.5 mm²
Colorred
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition0.77 W
Maximum load current24 A (For 4 mm² conductor cross section, se derating curve)
Nominal current IN24 A
Nominal voltage UN500 V
Open side panelYes
Insertion/withdrawal cycles mechanical100
Result of surge voltage testTest passed
Surge voltage test setpoint7.3 kV
Result of power-frequency withstand voltage testTest passed
Power frequency withstand voltage setpoint1.89 kV
Result of tight fit on supportTest passed
Tight fit on carrierNS 35
Setpoint1 N
Short circuit stability resultTest passed
Conductor cross section short circuit testing2.5 mm²
Short-time current0.3 kA
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Oscillation, broadband noise test resultTest passed
Test specification, oscillation, broadband noiseDIN EN 50155 (VDE 0115-200):2008-03
Test spectrumService life test category 1, class B, body mounted
Test frequencyf1= 5 Hz to f2= 150 Hz
ASD level0.964 (m/s2)2/Hz
Acceleration0.58 g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
Shock test resultTest passed
Test specification, shock testDIN EN 50155 (VDE 0115-200):2008-03
Shock formHalf-sine
Acceleration5 g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)

Dimensions

Width5.2 mm
End cover width2.2 mm
Length60.5 mm
Height NS 35/7,536.5 mm
Height NS 35/1544 mm

Connection data

Connection methodSpring-cage/plug-in connection
Connection in acc. with standardIEC 61984
Conductor cross section solid min.0.08 mm²
Conductor cross section solid max.4 mm²
Conductor cross section AWG min.28
Conductor cross section AWG max.12
Conductor cross section flexible min.0.08 mm²
Conductor cross section flexible max.2.5 mm²
Min. AWG conductor cross section, flexible28
Max. AWG conductor cross section, flexible14
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.0.5 mm²
Stripping length8 mm ... 10 mm
Internal cylindrical gageA3

Standards and Regulations

Connection in acc. with standardCSA
IEC 61984
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3061237 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.08 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.08 mm²
Rated current In (EF008250) 24 A
Rated voltage (EF000228) 500 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of levels (EF002659) 1
Number of clamp positions per level (EF002660) 3
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 5.2 mm
Height (EF000040) 60.5 mm
Depth (EF000049) 36.5 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Red
Internally connected stages (EF002661) Yes
