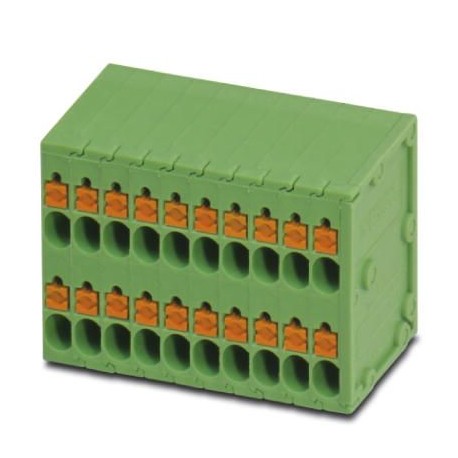

SPTD 1,5/16-H-3,5 1860280 PHOENIX CONTACT PCB terminal block
SPTD 1,5/16-H-3,5
1860280
PHOENIX CONTACT
20 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 10 A, nominal voltage (III/2): 200 V, nominal cross-section: 1.5 mm², number of potentials: 32, number of rows: 2, number of poles per row: 16, article family: SPTD 1.5, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1860280 |
|---|---|
| Packing unit | 20 pc |
| Minimum order quantity | 20 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626120799 |
| Weight per Piece (excluding packing) | 32.690 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
Dimensions
| Length [ l ] | 18 mm |
|---|---|
| Pitch | 3.5 mm |
| Width [ w ] | 57.5 mm |
| Height | 24.2 mm |
| Height [ h ] | 24.2 mm |
| Solder pin [P] | 3.5 mm |
| Pin spacing | 9.35 mm |
| Hole diameter | 1.3 mm |
General
| Range of articles | SPTD 1,5 |
|---|---|
| Nominal cross section | 1.5 mm² |
| Contact material | Tin |
| Solder pin surface | |
| Number of positions | 16 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 24.2 mm |
| Number of electrical connections (EF008252) | 32 |
| Number of levels (EF002659) | 2 |
| Modular spacing connections (EF006827) | 3.5 mm |
| Rated current In (EF008250) | 10 A |
| Rated voltage (EF000228) | 200 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.2 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
