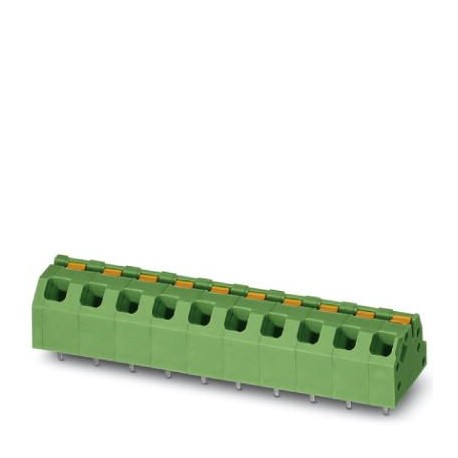

SPTAF 1/ 7-5,0-IL 1862327 PHOENIX CONTACT PCB terminal block

SPTAF 1/ 7-5,0-IL

1862327

PHOENIX CONTACT

80 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 16 A, nominal voltage (III/2): 320 V, nominal section: 1.5 mm², number of potentials: 7, number of rows: 1, number of poles per row: 7, family of articles: SPTAF 1/.. -IL, pitch: 5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45°, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.6 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1862327
Packing unit80 pc
Minimum order quantity80 pc
NoteMade to Order (non-returnable)
GTIN4055626137643
Weight per Piece (excluding packing)4.400 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]11 mm
Pitch5 mm
Dimension a30 mm
Width [ w ]35 mm
Height8 mm
Height [ h ]10.6 mm
Solder pin [P]2.6 mm
Pin spacing5 mm
Hole diameter1.1 mm

General

Range of articlesSPTAF 1/..-IL
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN16 A
Nominal cross section1.5 mm²
Maximum load current16 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Stripping length8 mm
Number of positions7

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.0.75 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.0.75 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
