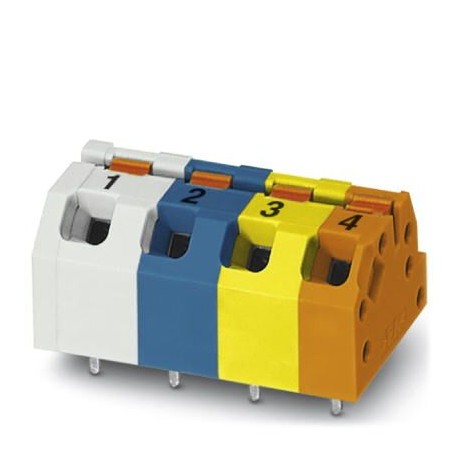

PHOENIX CONTACT SPTAF 1/ 4-5,0-IL PROFINET 3 SPTAF 1/ 4-5,0-IL PROFINET 3 1050669 PHOENIX CONTACT PCB terminal block SPTAF 1/ 4-5,0-IL PROFINET 3 1050669 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPTAF 1/ 4-5,0-IL PROFINET 3 1050669 PHOENIX CONTACT PCB terminal block SPTAF 1/ 4-5,0-IL PROFINET 3 1050669

SPTAF 1/ 4-5,0-IL PROFINET 3

1050669

PHOENIX CONTACT

80 Pcs.

PCB terminal block - SPTAF 1/ 4-5,0-IL PROFINET 3 - 1050669 Terminal block for printed circuit board, nominal current: 16 A, nominal voltage (III/2): 320 V, nominal section: 1.5 mm², number of potentials: 4, number of rows: 1, number of poles per row: 4, family of articles: SPTAF 1/.. -IL PROFINET, pitch: 5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: multicolor, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.6 mm, number of solder pins per potential: 2, packaging type: boxed. The PCB terminal block meets the requirements of the CAT5-compliant "Guideline for PROFINET" version 05/2017

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB terminal block, nominal current: 16 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 4, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: multi-color. PCB terminal block satisfies the requirements of the “Guideline for PROFINET” in the edition dated 05/2017

Key Commercial Data

Orderkey1050669
Packing unit1
GTIN4055626669434
Custom tariff number85369010

Dimensions

Length [ l ]11 mm
Pitch5 mm
Dimension a15 mm
Width [ w ]20 mm
Height8 mm
Height [ h ]10.6 mm
Solder pin [P]2.6 mm
Pin spacing5 mm
Hole diameter1.1 mm

General

Range of articlesSPTAF 1/..-IL PROFINET
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN16 A
Nominal cross section1.5 mm²
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Stripping length8 mm
Number of positions4

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.0.75 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.0.75 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643

ETIM for 1050669 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 10.6 mm
Number of electrical connections (EF008252) 4
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 16 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 1.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.1 mm
Length pin (EF006825) 2.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
