View larger
Images are for illustrative purposes only. Please refer to data sheet for details

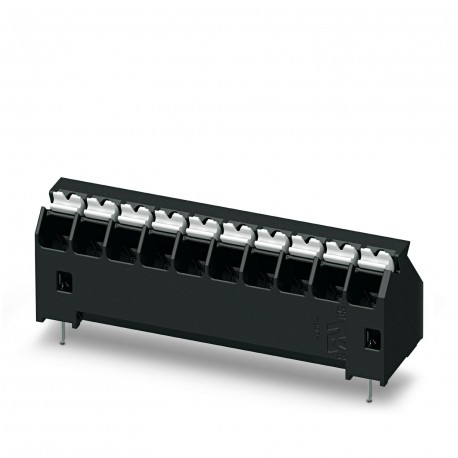

SPTA-THR 1,5/ 4-3,81BDWH-SDR32 1092713 PHOENIX CONTACT Terminal for printed circuit board, rated current: 13..
SPTA-THR 1,5/ 4-3,81BDWH-SDR32
1092713
PHOENIX CONTACT
145 Pcs.
Terminal for printed circuit board, rated current: 13,5 A, pitch: 3,81 mm, number of poles: 6, type of connection: spring clamp push-in, mounting: Weld THR, direction for connection conductor/pcb: 45 °, color: black
PCB terminal, nominal current: 13.5 A, nominal voltage (III/2): 160 V, nominal cross-section: 1.5 mm², number of rows: 1, number of poles per row: 4, article family: SPTA 1.5/.. -THR, pitch: 3.81mm, connection type: Push-in spring connection, mounting: Solder THR, driver/PCB connection direction: 45°, color: black, Pin Arrangement: Linear Pin Arrangement, Pin Length [P]: 2.6mm, Number of Solder Pins by Potential: 1, Packing Type: 32mm Wide Belt
PCB terminal block, rated current: 17.5 A, dimensioning voltage (III/2): 160 V, nominal cross-section: 1.5 mm2, number of rows: 1, number of poles per row: 4, product series: SPTA 1.5/.. -THR, pitch: 3.81 mm, connection type: Push-in spring connection, mounting: TTHR / wave soldering, conductor/board connection direction: 45°, color: black, Pin layout: Linear pinning, Pin length [P]: 2.6 mm, number of solder pins per potential: 1, package type: Tape width 32 mm
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Product Type | PCB terminal block |
| Product Family | SPTA 1.5/.. -THR |
| Product Line | COMBICON Terminals S |
| Number of poles | 4 |
| Step | 3.81 mm |
| Number of rows | 1 |
| Pin Layout | Linear Pinning |
| Number of Welding Pins per Potential | 1 |
| Data maintenance status | |
| Article review | 05 |
| Rated Current IN | 17.5 A |
| Rated voltage UN | 160 V |
| Sizing voltage (III/3) | 160 V |
| Sizing impulse voltage (III/3) | 2.5 kV |
| Sizing voltage (III/2) | 160 V |
| Sizing Impulse Voltage (III/2) | 2.5 kV |
| Sizing voltage (II/2) | 250 V |
| Sizing Impulse Voltage (II/2) | 2.5 kV |
| Connection technology | |
| Nominal cross-section | 1.5 mm² |
| Conductor connection | |
| Link | Push-in spring connection |
| Rigid conductor cross-section | 0.2 mm² ... 1.5 mm² (Connection with open connection point) |
| 0.34 mm² ... 1.5 mm² (Push-in connection) | |
| Flexible conductor cross-section | 0.5 mm² ... 1.5 mm² |
| Conductor cross-section AWG | 24 ... 16 |
| Flexible conductor cross-section with cable lug without plastic collar | 0.25 mm² ... 1.5 mm² |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.25 mm² ... 1.5 mm² |
| 2 conductors of identical cross-section flexible with TWIN ferrule with plastic collar | 0.5 mm² ... 0.75 mm² |
| Length of the section to be stripped | 10 mm |
| Mounting type | TTHR / wave soldering |
| Pin Layout | Linear Pinning |
| Processing Instructions | |
| Process | Reflow/wave soldering |
| Moisture Sensitive Level | MSL 1 |
| Classification Temperature Tc | 260 °C |
| Reflow Soldering Cycles | 3 |
| Material information - contacts | |
| note | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu Alloy |
| Surface Finish | Hot-dip galvanizing |
| Metal Surface, Connection Point (Surface Layer) | Tin (2 - 4 μm Sn) |
| Metal Surface Welding Area (Surface Layer) | Tin (2 - 4 μm Sn) |
| Material information - case | |
| Color (Case) | Black (9005) |
| Insulation material | LCP |
| Insulation Material Group | IIIa |
| CTI according to IEC 60112 | 175 |
| Combustibility class according to UL 94 | V0 |
| Flammability index of GWFI filament according to EN 60695-2-12 | 850 |
| GWIT filament ignition temperature according to EN 60695-2-13 | 775 |
| Brinell hardness test temperature according to EN 60695-10-2 | 125 °C |
| Material data - drive element | |
| Colour (Drive Element) | White (9010) |
| Insulation material | PA GF |
| Insulation Material Group | The |
| CTI according to IEC 60112 | 600 |
| Combustibility class according to UL 94 | V0 |
| Mounting Note | The item is not suitable for cleaning PCBs with liquids. |
| Dimensioned Drawing |  |
| Step | 3.81 mm |
| Width [w] | 16.03 mm |
| Height [h] | 14.5 mm |
| Length [l] | 11.6 mm |
| Installation Height | 11.9 mm |
| Weld Shank Length [P] | 2.6 mm |
| Printed circuit board design | |
| Bore diameter | 1.1 mm |
| Conductor Integrity and Stability Test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Test passed |
| Tensile test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor cross-section/conductor type/tensile force nominal value/actual value | 0.2 mm² / rigid / > 10 N |
| 0.5 mm² / flexible / > 20 N | |
| 1.5 mm² / rigid / > 40 N | |
| 1.5 mm² / flexible / > 40 N | |
| Ambient Temperature Test | |
| Test Specification | DIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10 |
| Heating verification requirement | The sum of the ambient temperature and the heating of the PCB terminal should not exceed the upper limit of the temperature. |
| Short-term current resistance | |
| Test Specification | DIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10 |
| Insulation Resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Between Contiguous Poles | > 5 MΩ |
| Creepage and Creepage Distances | |
| Test Specification | DIN EN 60947-7-4 (VDE 0611-7-4):2014-08 |
| Insulation Material Group | IIIa |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 175 |
| Rated insulation voltage (III/3) | 160 V |
| Rated impulse voltage (III/3) | 2.5 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 1.5 mm |
| Minimum creepage value (III/3) | 2.5 mm |
| Rated Isolation Voltage (III/2) | 160 V |
| Rated impulse voltage (III/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 1.5 mm |
| Minimum creepage value (III/2) | 1.6 mm |
| Rated Isolation Voltage (II/2) | 250 V |
| Rated Impulse Voltage (II/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 1.5 mm |
| Minimum creepage value (II/2) | 2.5 mm |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 50 m/s² (60.1 Hz ... 150 Hz) |
| Test duration per axle | 2.5 h |
| Test Directions | X, Y, and Z axis |
| Glow Wire Test | |
| Test Specification | DIN EN 60695-2-10 (VDE 0471-2-10):2014-04 |
| Temperature | 850 °C |
| Duration of application | 5 s |
| Aging | |
| Test Specification | DIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10 |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 105 °C (Depending on current flow curve/derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Dimensioned Drawing |  |
| Packaging | Tape width 32 mm |
| Belt width [W] | 32 mm |
| Coil external size [W2] | 38.4 mm |
| Coil diameter [A] | 330 mm |
| Type of packaging | Transparent bag |
| ESD Level | (D) Anti-static |
| Test Specification | DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 14.5 mm |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 3.81 mm |
| Rated current In (EF008250) | 17.5 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.1 mm |
| Length pin (EF006825) | 2.6 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of banding (EF007011) | Blister girdle (for SMD) |
