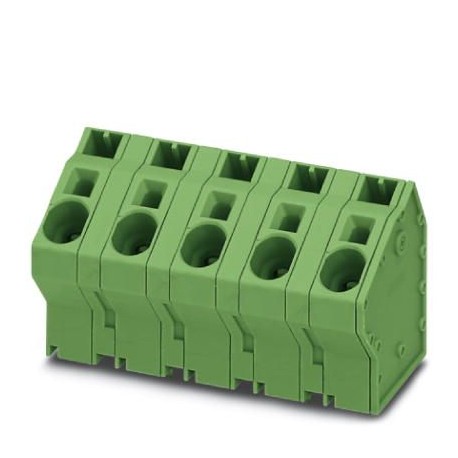

SPTA 16/ 5-15,0-ZB 1034125 PHOENIX CONTACT PCB terminal block
SPTA 16/ 5-15,0-ZB
1034125
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 76 A, nominal voltage (III/2): 1000 V, nominal cross-section: 16 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, article family: SPTA 16/, pitch: 15 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 60 °, color: green, Pin arrangement: Zigzag Pins W, Pin length [P]: 4.1 mm, number of welding pins per potential: 3, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1034125 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626539737 |
| Weight per Piece (excluding packing) | 56.180 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | PCB terminal block |
|---|---|
| Range of articles | SPTA 16/ |
| Pitch | 15 mm |
| Number of positions | 5 |
| Connection method | Push-in spring connection |
| Mounting type | Wave soldering |
| Number of levels | 1 |
Electrical parameters
| Rated current | 76 A |
|---|---|
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
Connection capacity
| Conductor cross section solid | 0.75 mm² ... 10 mm² (Conductor connection with open terminal point) |
|---|---|
| 2.5 mm² ... 10 mm² (Push-in connection) | |
| Single-wire/terminal point, stranded GRP | 0.75 mm² ... 16 mm² |
| Conductor cross section flexible | 0.75 mm² ... 16 mm² |
| Conductor cross section AWG / kcmil | 18 ... 4 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.75 mm² ... 16 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.75 mm² ... 10 mm² |
| 2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve | 0.75 mm² ... 4 mm² |
| Stripping length | 18 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface terminal point (top layer) | Tin (10 - 16 µm Sn) |
| Metal surface soldering area (top layer) | Tin (10 - 16 µm Sn) |
Material data - housing
| Insulating material | PA |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions for the product
| Length [ l ] | 32.7 mm |
|---|---|
| Width [ w ] | 71.8 mm |
| Height [ h ] | 42.23 mm |
| Pitch | 15 mm |
| Height (without solder pin) | 38.13 mm |
| Solder pin [P] | 4.1 mm |
| Pin dimensions | 1.2 x 1 mm |
| Dimension a | 60 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C |
Termination and connection method
| Conductor connection test | The stripped-off ends of the largest conductor can be completely inserted in the opening of the terminal point without using excessive force. |
|---|---|
| Test result | Test passed |
| Test – repeated connection and release | IEC 60999-1:1999-11 |
| Test passed | |
| Test for conductor damage and slackening | IEC 60999-1:1999-11 |
| Test passed |
Pull-out test
| Pull-out test | IEC 60999-1:1999-11 |
|---|---|
| Test passed | |
| Conductor cross section / conductor type / tensile force | 0.75 mm² / solid / > 30 N |
| 0.75 mm² / flexible / > 30 N | |
| 10 mm² / solid / > 90 N | |
| 16 mm² / flexible / > 100 N |
Mechanical tests according to standard
| Test specification | IEC 60947-7-4 |
|---|---|
| Dimensional test | Test passed IEC 60512-1-2:2002-02 |
Electrical tests
| Rated current | 76 A |
|---|---|
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
Air clearances and creepage distances
| Specification | IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09 |
|---|---|
| Insulating material group | I |
| Voltage | 1000 V |
| Rated insulation voltage (III/3) | 1000 V |
| Rated insulation voltage (III/2) | 1000 V |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 6 kV |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Classifications
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 42.23 mm |
| Number of electrical connections (EF008252) | 5 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 15 mm |
| Rated current In (EF008250) | 76 A |
| Rated voltage (EF000228) | 1000 V |
| Rated surge voltage (EF002993) | 8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.75 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.75 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.75 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 10 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.7 mm |
| Length pin (EF006825) | 4.1 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
