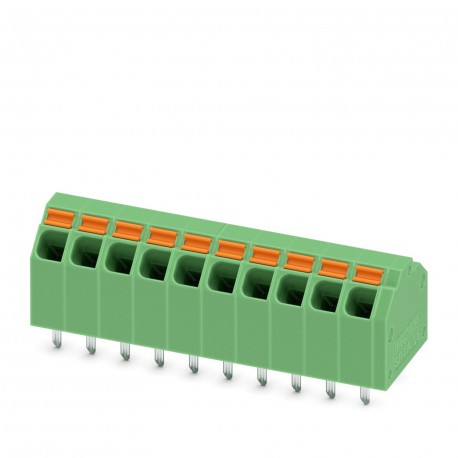

PHOENIX CONTACT SPTA 1,5/ 5-3,81 3PA SPTA 1,5/ 5-3,81 3PA 1846550 PHOENIX CONTACT Terminal for printed circuit board, rated current: 9, rated vol.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPTA 1,5/ 5-3,81 3PA 1846550 PHOENIX CONTACT Terminal for printed circuit board, rated current: 9, rated vol..

SPTA 1,5/ 5-3,81 3PA

1846550

PHOENIX CONTACT

50 Pcs.

Terminal for printed circuit board, rated current: 9, rated voltage: 160 V, pitch: 3,81 mm, number of poles: 5, connection type: spring clamp push-in, mounting: Soldering by wave direction for connection conductor/pcb: 45 °, color: green Terminal block for printed circuit board, nominal current: 9 A, nominal voltage (III/2): 160 V, nominal cross-section: 1.5 mm², number of potentials: 3, number of rows: 1, number of poles per row: 5, article family: SPTA 1.5/, pitch: 3.81 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.4 mm, number of welding pins per potential: 2, packaging type: boxed PCB terminal block, rated current: 17.5 A, dimensioning voltage (III/2): 160 V, nominal cross-section: 1.5 mm2, number of potentials: 3, number of rows: 1, number of poles per row: 5, product series: SPTA 1.5/, pitch: 3.81 mm, connection type: Push-in spring connection, mounting: wave soldering, conductor/board connection direction: 45°, Color: Green, Pin Layout: Linear Pinning, Pin Length [P]: 3.4mm, Number of Solder Pins per Potential: 2, Package Type: Packed in Carton

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product TypePCB terminal block
Product FamilySPTA 1.5/
Product LineCOMBICON Terminals S
Number of poles5
Step3.81 mm
Number of connections3
Number of rows1
Number of potentials3
Pin LayoutLinear Pinning
Number of Welding Pins per Potential2
Data maintenance status
Article review04
Rated Current IN17.5 A
Rated voltage UN160 V
Sizing voltage (III/3)160 V
Sizing impulse voltage (III/3)2.5 kV
Sizing voltage (III/2)160 V
Sizing Impulse Voltage (III/2)2.5 kV
Sizing voltage (II/2)320 V
Sizing Impulse Voltage (II/2)2.5 kV
Connection technology
Nominal cross-section1.5 mm²
Conductor connection
LinkPush-in spring connection
Rigid conductor cross-section0.2 mm² ... 1.5 mm²
Flexible conductor cross-section0.2 mm² ... 1.5 mm²
Conductor cross-section AWG24 ... 16
Flexible conductor cross-section with cable lug without plastic collar0.25 mm² ... 1.5 mm²
Flexible conductor cross-section with mounted lug and plastic collar0.25 mm² ... 1.5 mm²
Length of the section to be stripped10 mm
Mounting typeWave Soldering
Pin LayoutLinear Pinning
Material information - contacts
noteComplies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201
Contact MaterialCu Alloy
Surface FinishHot-dip galvanizing
Metal Surface, Connection Point (Surface Layer)Tin (4 - 8 μm Sn)
Metal Surface Welding Area (Surface Layer)Tin (4 - 8 μm Sn)
Material information - case
Color (Case)Green (6021)
Insulation materialPA
Insulation Material GroupThe
CTI according to IEC 60112600
Combustibility class according to UL 94V0
Flammability index of GWFI filament according to EN 60695-2-12850
GWIT filament ignition temperature according to EN 60695-2-13775
Brinell hardness test temperature according to EN 60695-10-2125 °C
Material data - drive element
Colour (Drive Element)Orange (2003)
Insulation materialPOM
Insulation Material GroupThe
CTI according to IEC 60112600
Combustibility class according to UL 94HB
Dimensioned Drawing
Step3.81 mm
Width [w]20.55 mm
Height [h]15.4 mm
Length [l]12 mm
Installation Height12 mm
Weld Shank Length [P]3.4 mm
Shank sizes0.6 x 1 mm
Printed circuit board design
Shank Distance7 mm
Bore diameter1.1 mm
Conductor Integrity and Stability Test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultTest passed
Tensile test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Conductor cross-section/conductor type/tensile force nominal value/actual value0.2 mm² / rigid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / rigid / > 40 N
1.5 mm² / flexible / > 40 N
Ambient Temperature Test
Test SpecificationDIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10
Heating verification requirementThe sum of the ambient temperature and the heating of the PCB terminal should not exceed the upper limit of the temperature.
Short-term current resistance
Test SpecificationDIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10
Insulation Resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Insulation Resistance Between Contiguous Poles> 5 MΩ
Creepage and Creepage Distances
Test SpecificationDIN EN 60947-1 (VDE 0660-100):2015-09
Insulation Material GroupThe
Resistance to surface currents (DIN EN 60112 (VDE 0303-11))CTI 600
Rated insulation voltage (III/3)160 V
Rated impulse voltage (III/3)2.5 kV
Minimum clearance value - inhomogeneous range (III/3)1.5 mm
Minimum creepage value (III/3)2 mm
Rated Isolation Voltage (III/2)160 V
Rated impulse voltage (III/2)2.5 kV
Minimum creepage value - inhomogeneous range (III/2)1.5 mm
Minimum creepage value (III/2)1.5 mm
Rated Isolation Voltage (II/2)320 V
Rated Impulse Voltage (II/2)2.5 kV
Minimum creepage value - inhomogeneous range (II/2)1.5 mm
Minimum creepage value (II/2)1.6 mm
Vibration test
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
Frequency10 - 150 - 10 Hz
Sweep Speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axle2.5 h
Test DirectionsX, Y, and Z axis
Glow Wire Test
Test SpecificationDIN EN 60695-2-10 (VDE 0471-2-10):2014-04
Temperature850 °C
Duration of application5 s
Aging
Test SpecificationDIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10
Environmental conditions
Ambient temperature (operating)-40 °C ... 105 °C (Depending on current flow curve/derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (transport and storage)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
PackagingPacked in carton
