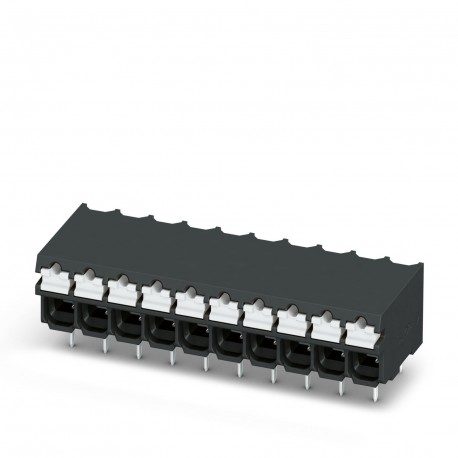

PHOENIX CONTACT SPT-THR 1,5/ 2-H-3,5 P26 R24 SPT-THR 1,5/ 2-H-3,5 P26 R24 1128036 PHOENIX CONTACT PCB terminal block, nominal current: 13.5 A, rated volt.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPT-THR 1,5/ 2-H-3,5 P26 R24 1128036 PHOENIX CONTACT PCB terminal block, nominal current: 13.5 A, rated volt..

SPT-THR 1,5/ 2-H-3,5 P26 R24

1128036

PHOENIX CONTACT

250 Pcs.

PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², pitch: 3.5 mm, number of positions: 2, connection method: Push-in spring connection, mounting: THR soldering, conductor/PCB connection direction: 0 °, color: black, Pin layout: Linear double pinning, Solder pin [P]: 2.6 mm Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 160 V, nominal section: 1.5 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, family of articles: SPT 1.5/.. -H-THR, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Weld THR, conductor connection direction/printed circuit board: 0 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.6 mm, number of solder pins per potential: 2, packaging type: 24 mm wide strap

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1128036
Packing unit1
GTIN4063151055189
Custom tariff number85369010

Drawings

Diagram

Diagram
Type: SPT-THR 1,5/ 5-H-3,5(3,81) P26
Tested according to DIN EN 60512-5-2:2003-01
Reduction factor = 1
Number of positions: 5

Back to top

Item properties

Brief article descriptionPCB terminal block
Range of articlesSPT 1,5/..-H-THR
Pitch3.5 mm
Number of positions2
Connection methodPush-in spring connection
Mounting typeTHR soldering
Pin layoutLinear double pinning
Number of levels1
Back to top

Electrical parameters

Nom. voltage160 V
Back to top

Connection capacity

Connection methodPush-in spring connection
Conductor cross section solid0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG / kcmil24 ... 16
Conductor cross section flexible, with ferrule without plastic sleeve0.2 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.2 mm² ... 0.75 mm²
Stripping length8 mm
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)
Back to top

Material data - housing

Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112175
Flammability rating according to UL 94V0
Back to top

Dimensions for the product

Dimensional drawing
Length [ l ]13.6 mm
Width [ w ]7.5 mm
Height [ h ]10.3 mm
Pitch3.5 mm
Height (without solder pin)7.7 mm
Solder pin [P]2.6 mm
Pin spacing7 mm
Pin dimensions0.7 x 0.3 mm
Dimension a3.5 mm
Back to top

Dimensions for PCB design

Hole diameter1.1 mm
Pin spacing7 mm
Back to top

Packaging information

Type of packaging24 mm wide tape
Pieces per package250
Denomination packing unitsPcs.
Back to top

General product information

Type of noteAssembly instruction:
NoteThis item is not suitable for PCB cleaning with liquids.
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Back to top

Termination and connection method

Connection testIEC 60998-2-2:2002-12
Test resultTest passed
Test for conductor damage and slackeningIEC 60998-2-2:2002-12
Test passed
Back to top

Pull-out test

Pull-out testIEC 60998-2-2:2002-12
Test passed
Conductor cross section / conductor type / tensile force0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N
Back to top

Electrical tests

Rated current13.5 A
Conductor cross section1.5 mm²
Rated voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
Back to top

Air clearances and creepage distances

Clearances and creepage distancesIEC 60947-7-4:2013-08
SpecificationIEC 60947-7-4:2013-08
Rated insulation voltage (III/3)160 V
Rated insulation voltage (III/2)160 V
Rated insulation voltage (II/2)320 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Minimum clearance - inhomogeneous field (III/3)1.5 mm
Minimum clearance - inhomogeneous field (III/2)1.5 mm
Minimum clearance - inhomogeneous field (II/2)1.5 mm
Minimum creepage distance value (III/3)2.5 mm
Minimum creepage distance value (III/2)1.6 mm
Minimum creepage distance value (II/2)3.2 mm
Back to top

Vibration test

SpecificationIEC 60068-2-6:2007-12
ResultTest passed
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 - 60.1 Hz)
Acceleration5 g (60.1 - 150 Hz)
Test duration per axis2.5 h
Back to top

Resistance to ageing, humidity and penetration of solids

Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %
Back to top

Classifications

eCl@ss

eCl@ss 8.027440401
eCl@ss 9.027440401
Back to top

ETIM

ETIM 5.0EC002643
Back to top

ETIM for 1128036 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 10.3 mm
Number of electrical connections (EF008252) 2
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 17.5 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.2 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 1.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.1 mm
Length pin (EF006825) 2.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Blister girdle (for SMD)
