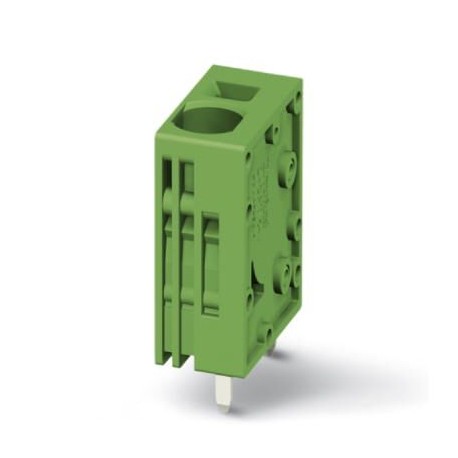

PHOENIX CONTACT SPT 5/ 4-V-7,5-ZB GY SPT 5/ 4-V-7,5-ZB GY 1859039 PHOENIX CONTACT PCB terminal block, nominal current: 41 A, nom. voltage: 1000 V.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPT 5/ 4-V-7,5-ZB GY 1859039 PHOENIX CONTACT PCB terminal block, nominal current: 41 A, nom. voltage: 1000 V..

SPT 5/ 4-V-7,5-ZB GY

1859039

PHOENIX CONTACT

50 Pcs.

PCB terminal block, nominal current: 41 A, nom. voltage: 1000 V, pitch: 7.5 mm, number of positions: 4, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: gray Terminal block for printed circuit board, nominal current: 41 A, nominal voltage (III/2): 630 V, nominal section: 6 mm², number of potentials: 4, number of rows: 1, number of poles per row: 4, family of articles: SPT 5/.. -V, pitch: 7.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 90 °, color: gray, Pin arrangement: Zigzag Pins W, Pin length [P]: 4.6 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB terminal block, nominal current: 41 A, nom. voltage: 1000 V, pitch: 7.5 mm, number of positions: 4, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: gray

Key Commercial Data

Orderkey1859039
Packing unit1
GTIN4055626076775
Custom tariff number85369010

Dimensions

Length [ l ]18.5 mm
Pitch7.5 mm
Dimension a22.5 mm
Width [ w ]31.8 mm
Height24.15 mm
Height [ h ]28.75 mm
Solder pin [P]4.6 mm
Pin spacing14 mm
Hole diameter2.1 mm

General

Range of articlesSPT 5/..-V
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)800 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN41 A
Nominal cross section6 mm²
Solder pin surface
Stripping length15 mm
Number of positions4

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.8
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1.5 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643

UNSPSC

UNSPSC 13.239121432

ETIM for 1859039 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 28.75 mm
Number of electrical connections (EF008252) 4
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 7.5 mm
Rated current In (EF008250) 41 A
Rated voltage (EF000228) 630 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 10 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 2.1 mm
Length pin (EF006825) 4.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Grey
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
