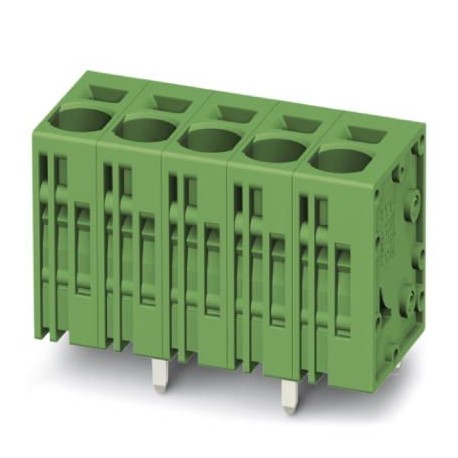

PHOENIX CONTACT SPT 5/17-V-7,5-ZB SPT 5/17-V-7,5-ZB 1703551 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPT 5/17-V-7,5-ZB 1703551 PHOENIX CONTACT PCB terminal block

SPT 5/17-V-7,5-ZB

1703551

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 41 A, dimensioning voltage (III/2): 1000 V, nominal section: 6 mm², number of potentials: 17, number of rows: 1, number of poles per row: 17, family of articles: SPT 5/.. -V, pitch: 7.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 90 °, color: green, Pin arrangement: W zigzag pins, Pin length [P]: 4.6 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1703551
Packing unit50 pc
NoteMade to Order (non-returnable)
GTIN4046356656955
Weight per Piece (excluding packing)41.600 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]18.5 mm
Pitch7.5 mm
Dimension a120 mm
Width [ w ]129.3 mm
Height24.15 mm
Height [ h ]28.75 mm
Solder pin [P]4.6 mm
Pin spacing14 mm
Hole diameter2.1 mm

General

Range of articlesSPT 5/..-V
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)800 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN41 A
Nominal cross section6 mm²
Solder pin surface
Stripping length15 mm
Number of positions17

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.8
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1.5 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
